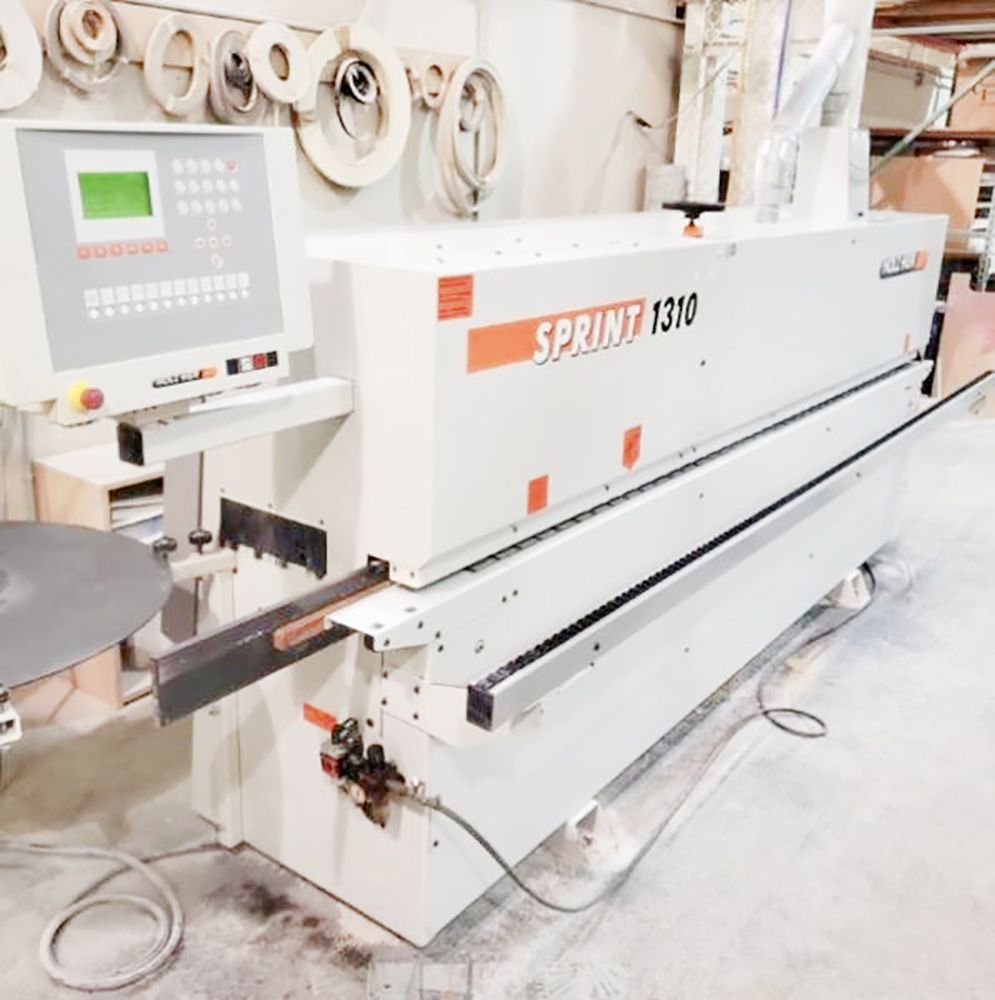

Holz-Her 1310

"This used edgebander is in good working condition."
Cartridge glue system (1906M), 3 mm edge thickness capacity, 6 - 45 mm panel thickness, 60 mm minimum panel width and 180 mm minimum length.

Equipped With:
Semi-automatic magazine coil (1903), 0.4 to 3 mm PVC capacity pneumatic guillotine for coil cutoff.
2-roller pressure s3ection (1912P) w/ electronically controlled and feed speed symphonized drive coil.

Workstations:
Double motor end trim (1818), with swivel point - chamfers 0 degrees to 10 degrees, 0.22 kW - 9,000 RPM motor, (HF - 300 Cy).
(1942M) Universal Top and Bottom fine trim, for bevels from 0 degrees to 15 degrees, 0.6 kW (0.9 HP) - 22,000 RPM HF (300 Cv) motor each.
Top & Bottom surface scraping (1929) for smoothing and cleaning of residues.
Top & Bottom glue scraping station.
Single feed speed 26 FPM (9 MPM).
PLC (Programmable Logic Control) for easy setup & program storage.
Note: New Feed Chain installed April 2020
Dimensions: 145" L x 57" W x 60" H
Weight: 2,000 lbs.
