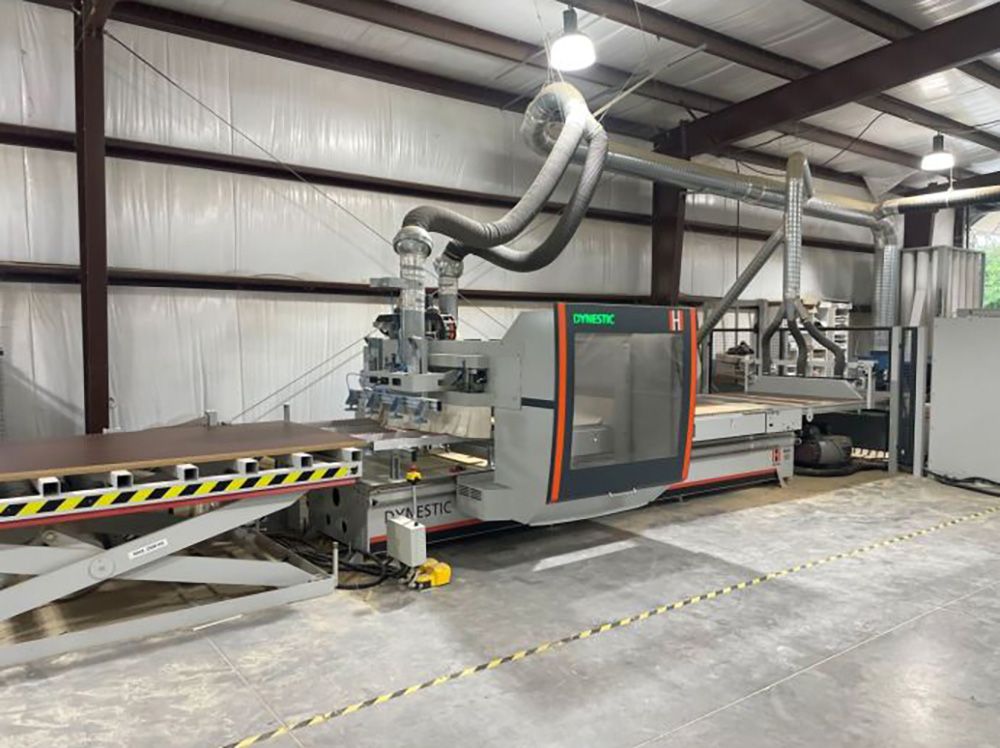

Holz-Her 7532-5

Used CNC Router
Max workpiece on nesting table: 5' x 10'
Max passage height of pusher over Dynestic table: Z = 4.72"
14 hp router spindle, HSK-F 63 connector
Drill aggregate: 19 spindles (13 vertical spindles, 6 horizontal spindles
Integrated saw aggregate for cutting/grooving in X-direction
13 compartment linear tool holder
590 cubic meter per hour vacuum pump
Control panel with 21.5" 16:9 touch screen (Windows based industrial PC controller
Touch tool length detection system
Loading: 3200 mm x 1600 mm lifting table
Pull in device with side positioning (4 each suction cups from 2 vacuum circuits for removing panels
Discharge pusher on moving stands, controlled
Powered discharge conveyor table, 10.5'
Automatic centralized lubrication
Side and rear safety fences
Safety light barriers in front of machine
