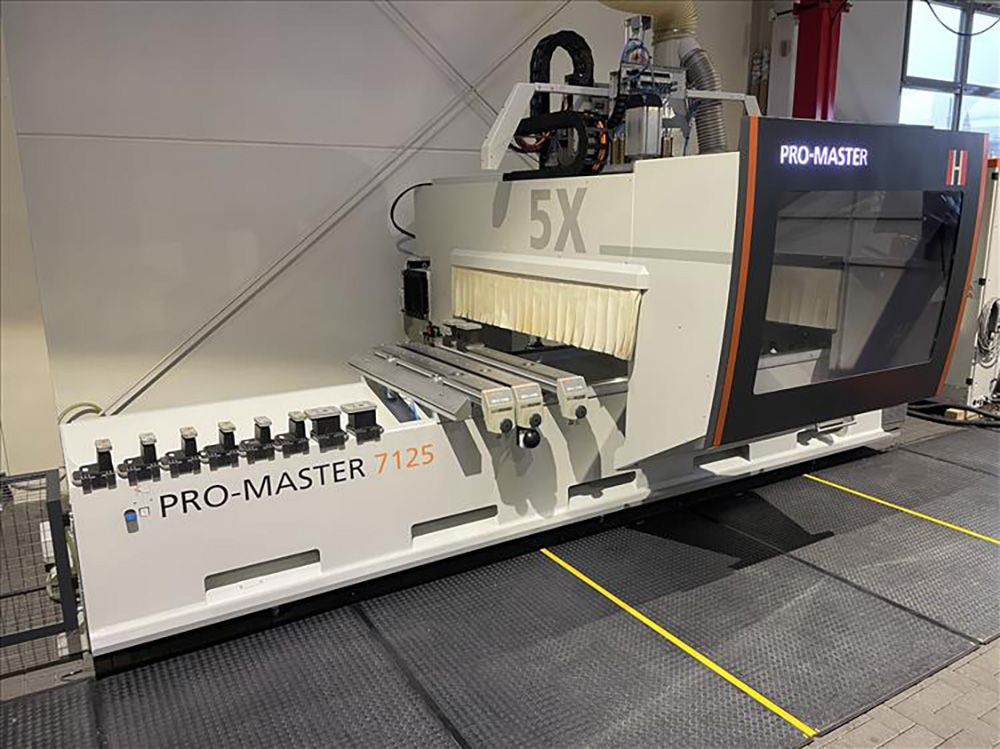

Holz-Her ProMaster 7125 5-axis

5-axis machining center used
Console machine,
pneum. Workpiece stops with double-acting cylinders,
pneumatic loading aids,
hardened, dust-protected prism guides,
helical rack and pinion drive (X-axis),
ball screws on the Y and Z axes,
network card for remote maintenance,
control cabinet cooling with heat exchanger,
handheld control unit,
C-axis,
A-axis,
saw unit for grooving in the X direction,
mobile disc tool changer,
includes safety fence,
includes safety mats,
pendulum operation possible,
laser for positioning the suction cups,
automatic central lubrication,
uninterruptible power supply

Technical specifications :
Machining length (milling-R) X: 3,385L / 3,605L mm
Machining length (milling-R) Y: 1,335 mm
Min. workpiece thickness: 215 mm
Machine control software: CAMPUS HOPS 7
Main spindle motor power: 12 kW (S6)
Main spindle speed: 1,000 - 24,000 rpm
Main spindle mount: HSK-F63
Spindle cooling: liquid cooling
Drilling unit motor power: 3 kW
Drill spindle mount: M10, 11 mm fit
Number of vertical drilling spindles: 10
Number of horizontal double drilling spindles in X-direction: 2
Number of horizontal double drilling spindles: 10 in the Y direction: 1 piece
Saw blade diameter of saw unit: 125 x 20 mm
Number of consoles: 6 pieces
Number of tools in the changer: 18 pieces
Vacuum pump capacity: 140 m³/h
Extraction connection diameter: 250 mm
Required flow rate: 6,100 m³/h
Required static vacuum: 1,300 Pa
Required air velocity: 35 m/s
Compressed air connection: 6-8 bar
Compressed air consumption: 300 Nl/min.
Weight: 4,600 kg,
