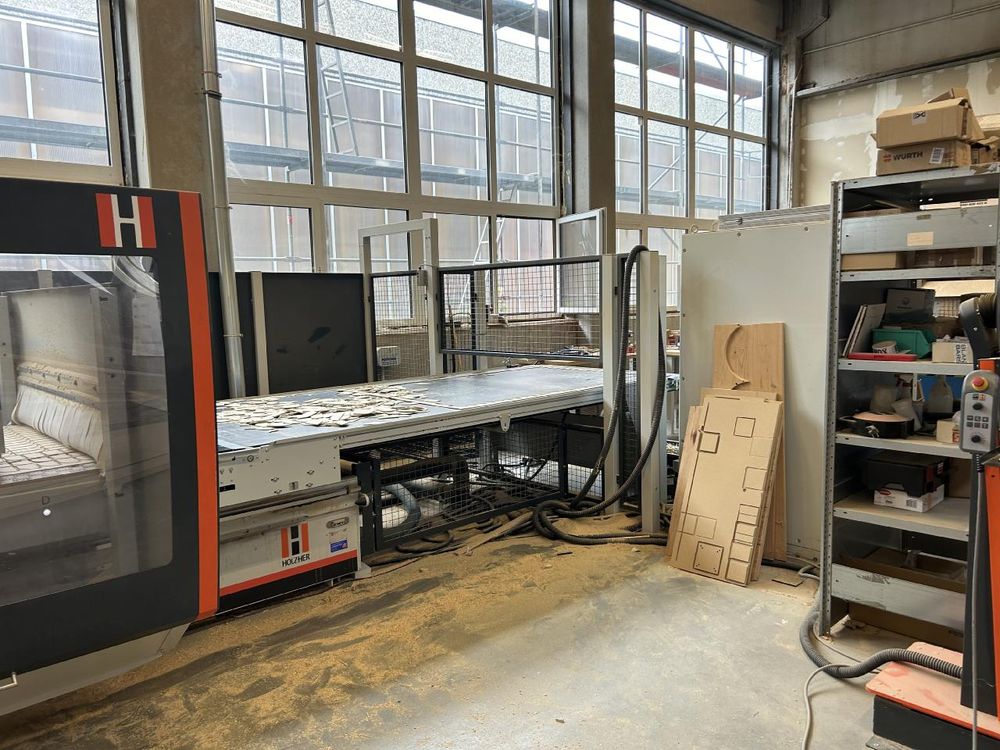

Holz-Her Dynestic 7532 10.5 automatic

Basic Machine - DYNESTIC 7532-10.5 Automatic
Dynestic Table
For traditional nesting machining with wear plate
Machining length 3100 mm
Welded machine frame with ground and hardened prism guides for the traveling column, unit head, and consoles
Gantry-style traveling column
Rack and pinion drive, helical gears, in the X and Y directions
Ball screws in the Z direction for precise positioning

Technical Specifications:
Machining dimensions:
Max. support surface on nesting table:
X = 3100 mm Y = 1560 mm
Max. travel distances
X = 4695 mm
Y = 2100 mm
Z = 293 mm
Max. overhead clearance of DYNESTIC table
Z = 100 mm
from the top edge of the table (without wear plate)
Maximum programmable speed
Vector speed: 128.0 m/min
X = 80 m/min, Y = 100 m/min, Z = 25 m/min
DYNESTIC Table
Fixed, continuous machining table with grid divisions, continuous grooves in the X and Y directions,
50 mm groove spacing with 25 meters of sealing cord for clamping the wear plate
Vacuum fields
1-circuit vacuum system
Drilling unit 7877, 19 spindles
Drive power 1.7 kW
13 vertical spindles, individually accessible
U-shaped arrangement
5+4 in the X and 4 in the Y direction
32 mm grid
Max. drill diameter: 35 mm
Total drill length: 70 mm from the screw end (depending on panel thickness)
Spindle extension stroke: 70 mm
Direction of rotation: Alternating right/left rotation (max.) 1000 - 4400 rpm
Continuously adjustable
Mounting: M 10 thread - 11 mm fit
Without tools, without mount
6 horizontal spindles
2 double drilling spindles in X direction
1 double drilling spindle in Y direction
Mounting: M 10 thread, 11 mm fit
Maximum total drill length: 63 mm from the screw end
Without tools, without mount
Milling unit 7842,
Power: 12.0 kW (S6)
n(max.) = 1000 - 24000 rpm, continuously adjustable,
Max. power at 12000 rpm to 24000 rpm
Air-cooled
With HSK-F 63 tool holder
With right-hand threaded nut (for right-hand tools)
With collet chuck with HSK shank
Ceramic ball bearings (hybrid bearings)
Max. tool weight: 6 kg (including mount)
Tools: Milling and Grinding tools max. Ø 160 mm
Safety enclosure according to CE standards
Safety fence on the sides and rear
500 m³/h dry-running vacuum pump
Personnel safety through light barriers in the front of the machine

Handheld control unit for remote control of the machine with the following operating functions:
> Start/stop of the machining program
> Speed ​​control of the machining cycles
> Reset button
> Manual feed/rapid traverse for all axes
> Emergency stop
CAMPUS V7 CAD/CAM software, 1x machine license

Consisting of:
1. CAMPUS NC-HOPS
2. CAMPUS MT-Manager
3. CAMPUS Workcenter
4. CAMPUS DXF interface
CAMPUS NC-HOPS
Graphical variant system with WOP and CAD/CAM properties for creating part variants using macro technology
Automatic central lubrication
Automatic lubrication at defined lubrication intervals
Additional sealing against dust by overpressure in each Guide Carriage
Simultaneous lubrication for all linear guides in the X, Y, and Z directions,
for all ball screws in the Y and Z directions, for all milling spindle guides, for tool changer guides (except pick-up tool changers)
All console guides are not lubricated.
Tool Changer 7875, 14-station Linear Pick-Up with tool cover
Maximum tool weight:> 5 kg per tool or 60 kg when fully loaded
Can be equipped with collet chucks with HSK shank (tools not visible in photos)
Stop monitoring
Safety device to prevent damage to the stops

Automation
Loading table with 4 roller conveyors
For manual or automatic loading of sheet material
Also as a preparation table for applying barcode labels
for DYNESTIC 7532
Feed device on the moving column
With 4 Vacuum suction cups for picking up the sheet material
and automatically transporting it to the machining table
Controlled pusher on the moving column
Including simultaneous suction of the wear plate during pushing
with one suction nozzle Ø 250 mm
Including underfloor suction, suction shaft at the end of the unloading table
with two suction nozzles Ø 80 mm

Complete conveyor belt

Belt conveyor for transporting the workpieces from the support point of the external feeder
to the machine transfer point

10" ruler, pneumatically liftable (AUT 12) at the front edge of the machine table; ideal for safely pushing even smaller workpieces
Unloading table, with conveyor belt
Including light barrier and underfloor suction
