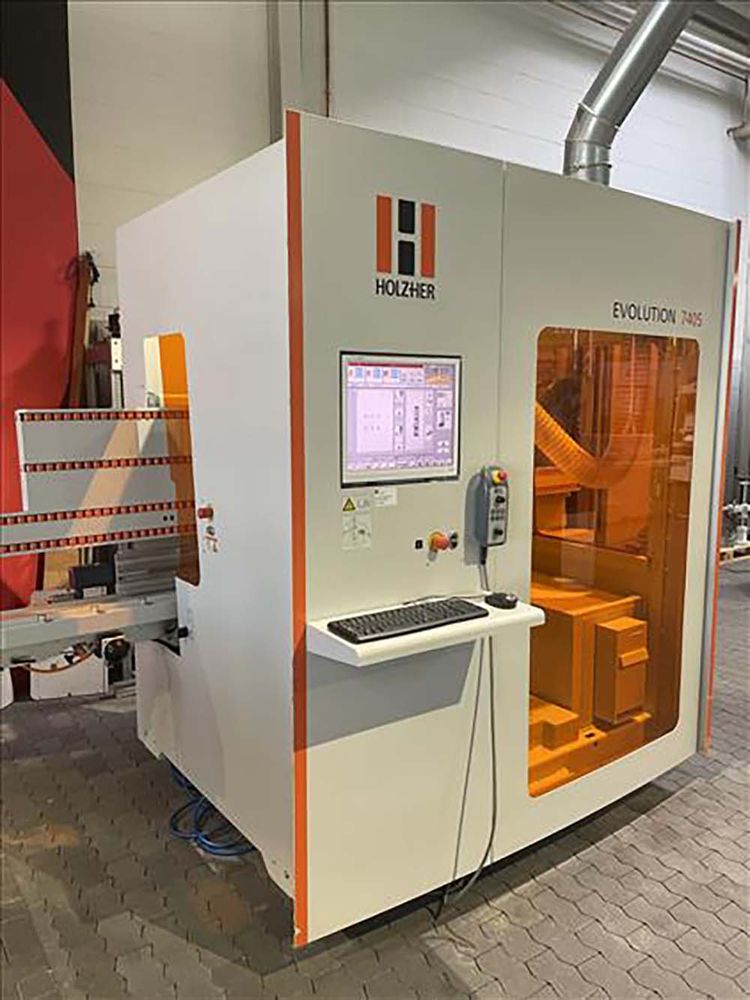

Holz-Her Evolution 7405

Machining Center - Used
Through-feed machining,
4-sided rerouting possible,
Automatic suction cup positioning,
Hardened, dust-protected prism guides,
Ball screws on all axes,
Network card for remote maintenance,
Integrated control cabinet,
Control cabinet cooling with heat exchanger,
Handheld control unit,
Saw unit for grooving in the X direction,
Pick-up tool changer

Technical specifications :
Min. workpiece length X: 200 mm,
Min. workpiece length Y: 70 mm,
Min. workpiece thickness: 8 mm,
Max. workpiece length X: 3,200 mm,
Max. workpiece length Y: 920 mm,
Max. workpiece thickness: 70 mm,
Machine control software: CAMPUS HOPS,
Main spindle motor power: 6.5 kW,
Main spindle speed: 1,000 - 18,000 rpm,
Main spindle mount: HSK-F63,
Drill unit motor power: 1.7 kW,
Drill spindle mount: M10, 11 mm fit,
Number of vertical drill spindles: 9,
Number of horizontal double drill spindles in X-direction: 2,
Number of horizontal double drill spindles in Y-direction: 1,
Saw blade diameter of saw unit: 120 x 20 mm,
Number of tools in the tool changer: 6,
Extraction connection diameter: 2 x 120 mm + 1 x 140 mm,
Required air flow: 4,100 m³/h,
Required static air flow: 1,000 m³/h Negative pressure: 2,500 - 3,000 Pa,
Required air velocity: 30 m/s,
Compressed air connection: 6 bar,
Compressed air consumption: 300 NL/min.,
Dimensions (L x W x H): 3,673 x 1,924 x 2,340 mm
