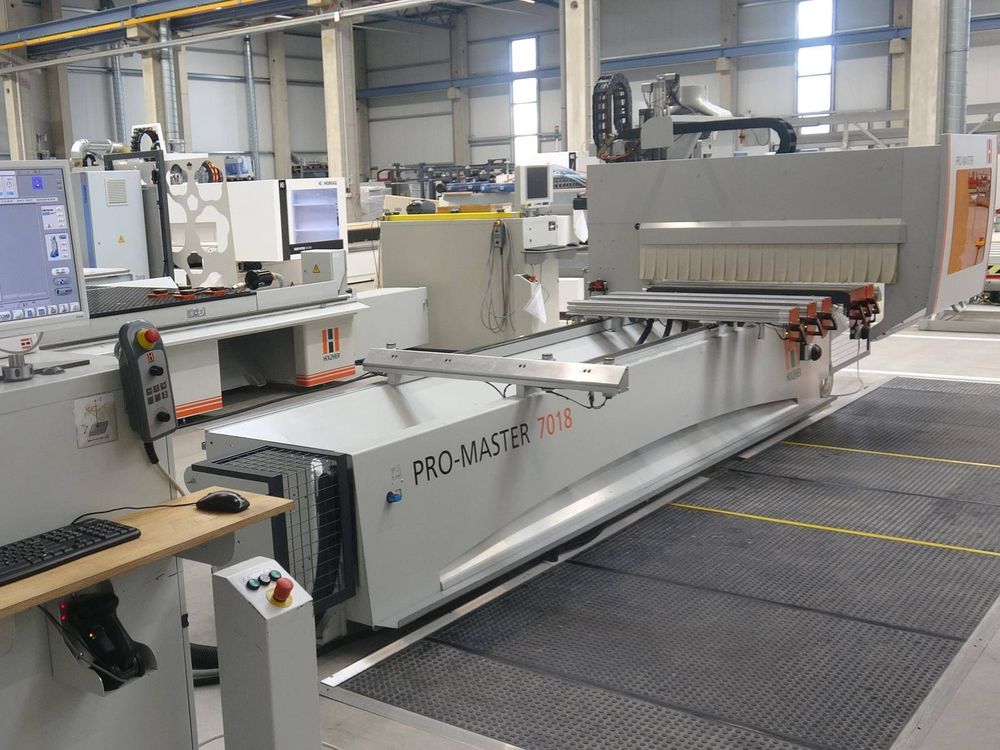

Holz-Her Promaster 7018 4th axis

Used machine
X-axis working range: 3,400 mm
Y-axis working range: 1,287 mm
Z-axis working range: 180 mm
Number of milling spindles: 1
Main motor: 15 kW
Maximum speed: 24,000 rpm
4th axis
Tool clamping system: HSK-F63
Tool change stations: 18
Vertical drilling spindles: 18
Horizontal X-axis drilling spindles: 6
Horizontal Y-axis drilling spindles: 2
Grooving saw in X-direction
Design: Cantilever machine
Machine table: Console table
Number of consoles: 6
Positioning aid: Point laser
Number of vacuum pumps: 1
Vacuum pump capacity: 140 m3/h
Safety device: Foot mat
Control system: BECKHOFF CONTROL
Software: HOLZ-HER CAMPUS V6.4
Conformity marking: CE mark
Weight: approx. 3,840 kg kg
Space required (length): 6.7 m
Space required (width): 4 m
