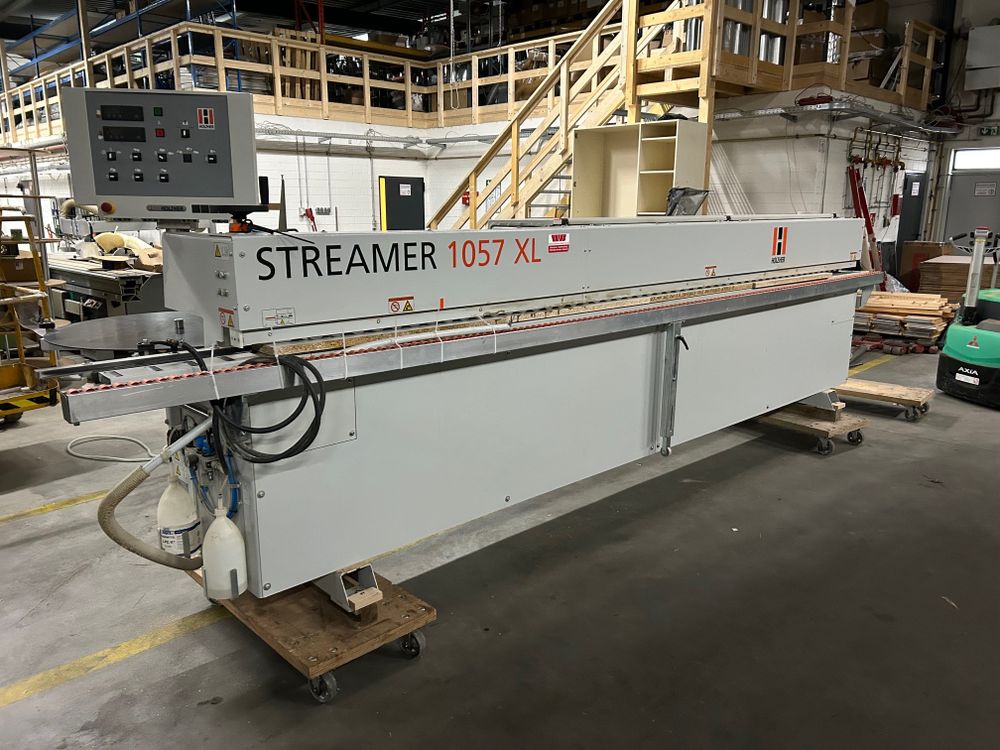

Holz-Her Streamer 1057 XL

Used machine
Features and technical data:
Basic machine Streamer 1057XL 200-400 V / 50 Hz, with manual pressure bridge adjustment
Extendable workpiece support XL, 600 mm spacing
Jointing milling unit FG201 with 2 milling heads for joining panel edges
Diamond cutter, diameter 70 x 64 x 30 mm, 2 + 2 flutes, counterclockwise rotation, Air Stream system
Diamond cutter, diameter 70 x 64 x 30 mm, 2 + 2 flutes, clockwise rotation, Air Stream system
Edge feeder 1903 automatic Transport of roll and strip materials
Glue application system Glu Jet GJ301 (2.3 kW, 50 Hz) Automatic glue height adjustment (sensor nozzle)
Automatic reloading function
Printing unit 1912-3 pneumatically driven first roll with pneumatic plunge control
Cut-off unit 1918 (60 mm) pneumatically controlled beveling 0/10 degrees, pneumatic adjustment
Extraction hoods for cut-off unit 1918
Multifunctional milling unit FR 201 Flush, radius and radius run including diamond cutters
Corner copying unit 1832 (1 x 0.35 kW, 200 Hz, 12,000 rpm) Corner copying function up to 3 mm edge thickness
Cutter, diamond, diameter 53 mm x 10 mm x 16 mm, Z = 3, R = 2 mm, with CM technology (Leuco system) with integrated Chip removal for form milling unit 1832
Scraping unit 1929
Chip box KPL average 120 - 1929+1964+FK70
HW indexable inserts for scraper carrier R = 2.0 mm (2 pcs. required)
Surface scraper FK 701 for removing adhesive residue for a clean adhesive joint
Spray unit TR 201 for the infeed and outfeed area
Buffing unit 1940 (2 x 0.09 kW, 50/60 Hz, 1400 rpm) For finishing and edge polishing, with 2 textile discs, swivels 0–5°

Minimum workpiece length (mm) 160
Workpiece thickness (mm) 6–45 (60)
Edge thickness (mm) 0.4–3 (6)
Feed rate (m/min) 10
Overall length (mm) 4630
Weight (kg) approx. 1440
