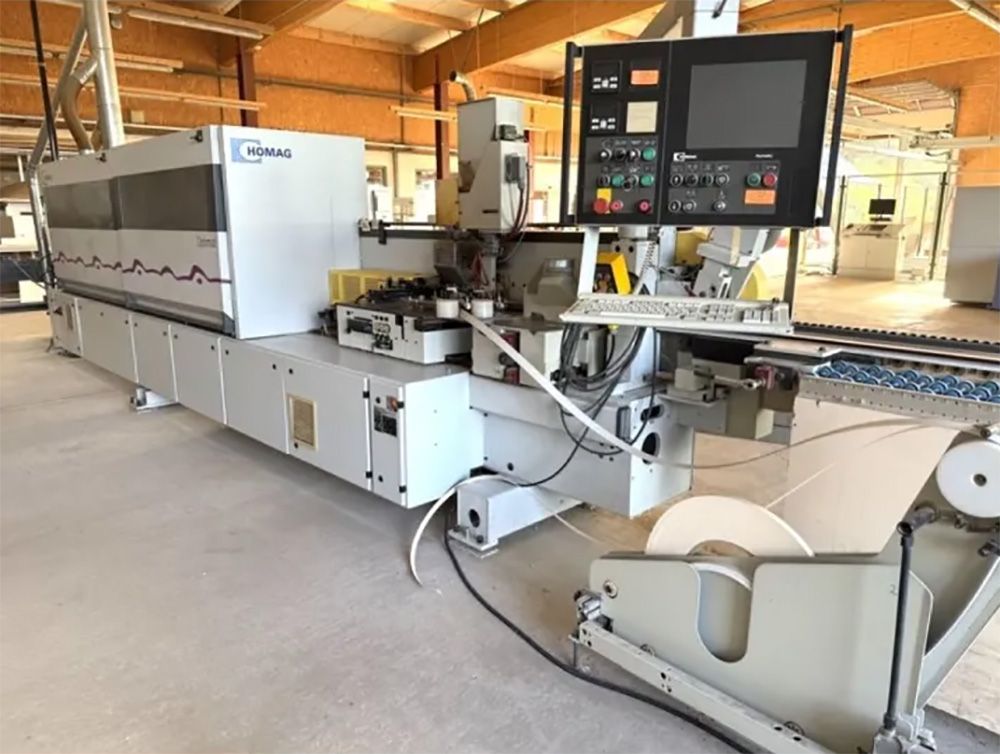

Homag PROFI KFL350/13/A3/WZ14

The HOMAG PROFI KFL350/13/A3/WZ14 single-sided edge banding line features high-precision feed speeds up to 32 m/min, advanced mechanization and a fully automatic workpiece infeed system.
A belt sanding unit for solid wood edges is included.
Instead of a standard chain, the machine is equipped with a roller block chain system, ensuring precise workpiece guidance.

Line Components:
Panel Sizing & Edge Banding Machine:
HOMAG PROFI KFL350/13/A3/WZ

Infeed / Loading Station:
HOMAG POWER TBL100/30/30/S

Return System (Boomerang):
LIGMATECH ZHR 30/L/185/F

General Technical Features:
Feed Speed: Stepless adjustable, 18 – 24 m/min
Edge Material: From coil or strips, up to 20 mm edge thickness
Glue System: PUR and EVA compatible
Transport Chain: 80 mm wide with rubber coating
Workpiece Support: Scissor-type, extendable up to 1,000 mm
Infeed Extension: 500 mm
Pull-In Unit: Two driven rollers arranged at an angle

Processing Units:
Jointing Milling Unit: 2 motors, 3 kW each
Gluing Unit: A20
Cross-Cut Unit: HL83 (Chamfer / Straight), 2 motors, 0.5 kW each
Pre-Milling Unit: 2 motors, 1.5 kW each
Profile Milling Unit: FK automatic, 8-function, 2 motors, 0.55 kW each
Automatic Multi-Scraping Unit (MN)
Glue Joint Scraping Unit
Top & Bottom Buffing Units with oscillation

Additional Equipment:
Chip conveyor belt
Electronic frequency inverters for processing units
HOMATIC control system with NC21 input terminal
Machine Condition: Machine is in good condition.
