Holzkraft BLADE OFF

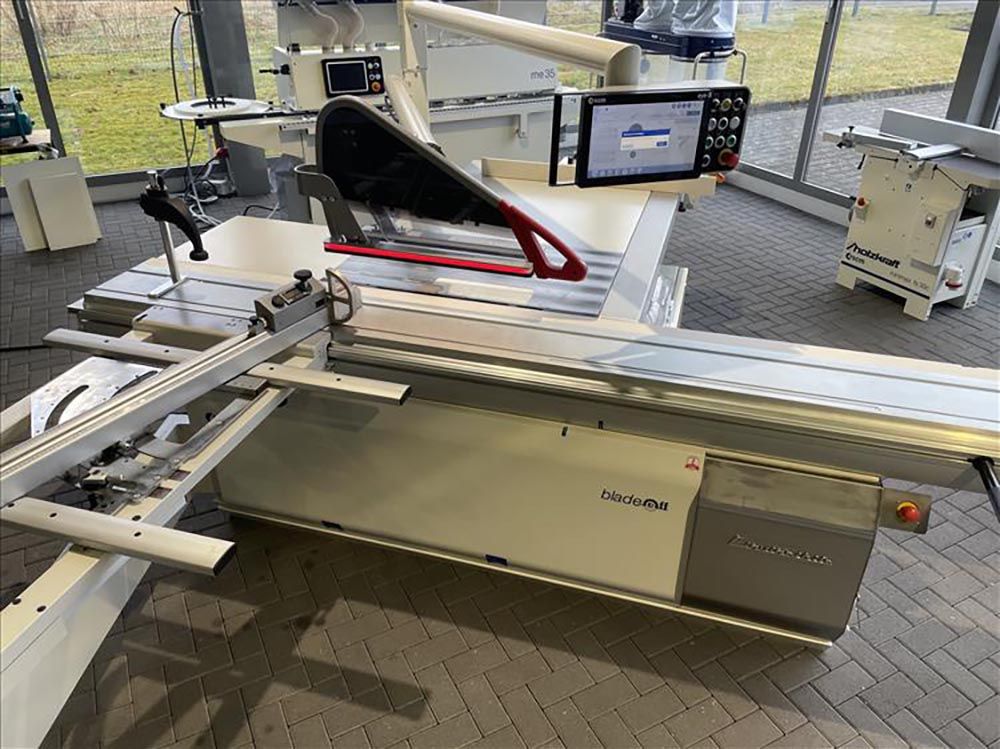

Panel saw L invincibile si 3 BLADE OFF
BLADE OFF Safety System - Exhibition Machine -

Technical Specifications :
Supply voltage: 400 V,
Mains frequency: 50 Hz,
Scoring motor power: 1.3 kW,
Drive motor power: 9.0 kW,
Format sliding table length: 3200 mm,
Format sliding table width: 360 mm,
Table length: 1040 mm,
Table width: 630 mm,
Cutting width with parallel stop: 1500 mm,
Max. cutting width to the left of the sawblade: 3200 mm,
Trimming length: 3200 mm,
Sawblade inclination: 90 - 45°,
Max. cutting height 90° with 400 mm sawblade: 120 mm,
Max. cutting height 45° with 400 mm sawblade: 89 mm,
Sawblade speed: 3000 – 5000 rpm,
Scoring sawblade diameter: 120 mm,
Scoring sawblade speed: 8500 rpm,
Length approx.: 7250 mm,
Width/Depth approx.: 4460 mm,
Height approx.: 1770 mm,
Net weight approx.: 1307 kg,
Extraction nozzle diameter: 100 and 120 mm
The BLADE OFF system detects
potentially hazardous situations early and
prevents them by retracting the sawblade into the machine table in a fraction of a second.
With the help of sensors, the system is able to distinguish between the workpiece and the operator.
An LED light in the sawblade guard indicates with a green light whether the protection system is active.
Control via 15" eye-S control console.
Connection with SCM Thundercut (Optimizer/Sequence Control App) possible.
Three longitudinal stops with integrated digital displays.
Ripstop electrically adjustable.
Start/Stop buttons for main and scoring sawblade
integrated into the sliding carriage.
Special guides and an innovative curved grind enable a fourfold increase in the load capacity of the edging carriage.
Ball-bearing telescopic arm ensures greater stability and smoother workpiece guidance.

Features:
Two-axis scoring unit with automatic
positioning
Anodized aluminum sliding carriage
On/off switch on the sliding carriage for the motors of the main and scoring sawblade
Edging frame with angle-adjustable aluminum telescopic stop
Material roll on the edging frame
Motorized saw ripstop, via control panel
Three longitudinal stops with integrated digital displays
Eccentric clamp
Control Sawblade height, tilt, and parallel stop
Pivoting control panel on top
Table extension
Table extension
Sawblade pendulum protection
