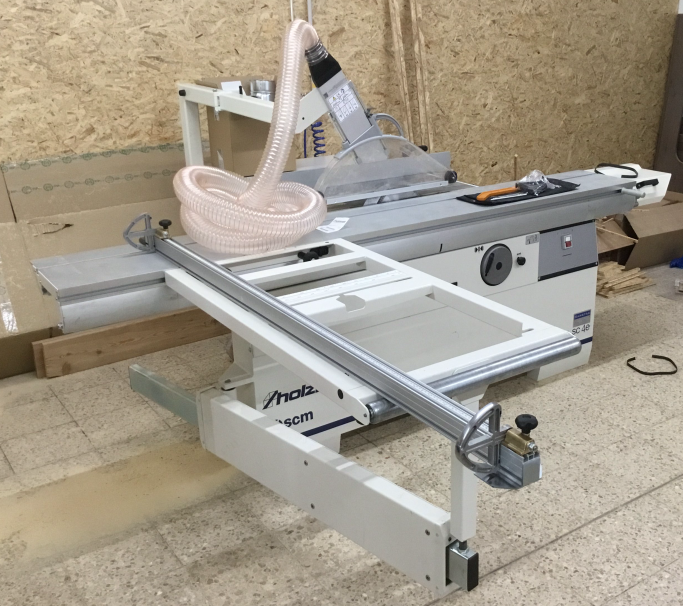

Holzkraft sc 4e 27

Used machine
Like-new condition

The solid worktable made of heavily ribbed cast iron and the welded steel base guarantee high torsional rigidity and vibration-free operation.
Smooth-running and precise sliding table made of anodized aluminum
with a proven and permanently smooth-running ball contact system on hardened guideways. 10-year warranty against wear on the guideways.
Cast iron saw unit with permanently precise double swivel segment guide and zero-point swivel. 6-year Holzkraft warranty against wear on the swivel segments.
Equipped with a powerful three-phase motor.
Saw blade swivel is indicated on a scale on the unit.
Easier panel feeding thanks to a large edging frame with roller.
Angle-adjustable aluminum telescopic fence with two professional folding stops.
Foldable parallel fence with quick-release clamping and fine adjustment.
Standard features include table extension and table widening. Eccentric clamp

Sliding table and table:
Sliding table length: 2600 mm
Sliding table width: 360 mm
Sliding table height: 142 mm
Table length: 840 mm
Table width: 560 mm
Table height: 900 mm

Circular saw unit:
Cutting width with rip fence: 900 mm
Max. crosscut width to the left of the saw blade: 3200 mm
Cutting length: 2660 mm
Saw blade tilt: 90 - 45°
Max. cutting height at 90°: 100 mm
Max. cutting height at 45°: 70 mm
Explanation of max. cutting height: Independent of scoring unit
Saw blade diameter: 315 mm
Explanation of saw blade diameter: Independent of scoring unit
Saw blade speed: 3800 rpm
Motor: 5.5 kW
