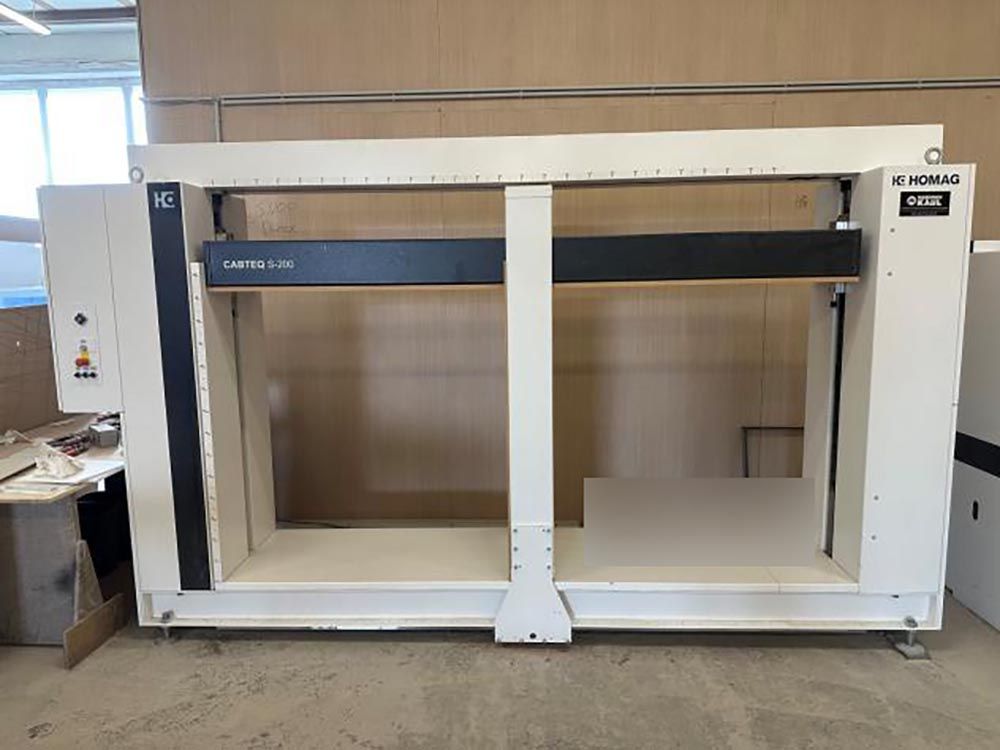

Homag CABTEQ S-200 MPH410/25/07

Cabinet Presses
Description:
Technical Specifications
- Pressing pressure (fixed):
- Vertical: max. 15 kN
- Horizontal: max. 15 kN
- Positioning speed:
- Rapid traverse: 50 mm/s
- Slow traverse: 25 mm/s
- Working height: 300 mm
- Weight: approx. 2.2 t
- Pneumatics: none
- Transport interface: no
- Space requirements:
- Length: 4,000 mm
- Depth: 750 mm
- Height: 2,300 mm
- Required room height: 2,500 mm

Cabinet dimensions:
- Length: 250...2,500 mm
- Depth: 250...700 mm
- Height: 150...1,400 mm

Connection values
- Operating voltage: 380-480 V, 50/60 Hz
- Control voltage: 24 V DC According to VDE
- Connected load: approx. 4 kW
- Not suitable for connection to an RCD.
- Specified ambient temperature: +5 ... +35 degrees Celsius

Floor requirements :
- Concrete quality C16/20 XC1
- Resistant to tensile and compressive loads
- Minimum thickness: 150 mm

Certification
Machine with CE marking in accordance with the EC Machinery Directive 2006/42/EC.
The machine complies with the statutory accident prevention regulations (UVV).
Contactor control
