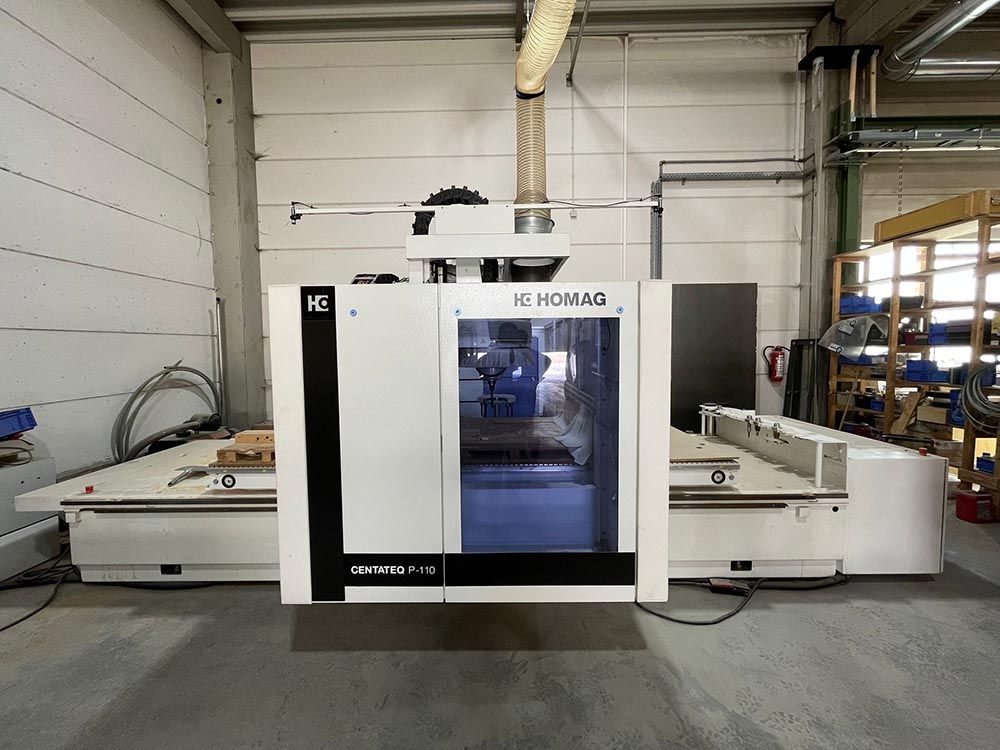

Homag Centateq P-110 Venture BMG 110/31/F/R

Used machine
Equipment and technical specifications:
Machine type: Nesting CNC machining center with 5-axis spindle
Design: Mobile gantry design with grooved aluminum grid table
Safety: Bumper technology for free access from all sides.
Control system: HOMAG powerControl with powerTouch, woodWOP, Tapio Ready

Travel paths
X-axis: 4030 mm
Y-axis: 2085 mm
Z-axis: Spindle: 400 mm Drilling gear: 315 m

Speeds
X: 35 m/min
Y: 50 m/min
Z: 15 m/min
X/Y: 61 m/min

Workpiece dimensions
Length (X): 3100 mm (grid table size)
Width (Y): 1600 mm (blank); 1405 mm for milling with a 25 mm tool diameter
Height (Z): 260 mm (including clamping device)

Worktable
Type: Grooved aluminum grid table (basic grid table configuration, R-table package)
Dimensions: X = 3100 mm
Clamping system:
Two-part vacuum system (290/345 m³/h)
Vacuum clamps: 6 pieces
Multi-clamps for R-table: 2 pieces
Vacuum connection for templates
Supply unit for pneumatic clamping elements
Side and length stop bolts: 140 mm, 16 pieces
Laser positioning aid: For precise workpiece alignment

Spindle
Type: Drive5CS Basic, 5-axis machining spindle, HSK-F63 chuck
Power: 12 kW, liquid-cooled
Speed: 1500-24,000 rpm, continuously programmable
C-axis: 360° interpolation range
Tool carrier: For 2 Z-axes (supports simultaneous use of spindle and drill drive)

Extraction system
Type: Central, with continuously adjustable extraction hood
Extraction connection: Ø 250 mm
Total extraction capacity: At least 4950 m³/h
Air speed: At least 28 m/s
Vacuum pressure: At least 2200 Pa

Tool changer
Disk changer: 8 positions, moving in the X direction
Max. tool diameter: 130 mm (fully loaded); 180 mm (individual tools)
Max. tool weight: 6 kg (including HSK chuck)
Changeover time: Approx. 14-19 seconds
Linear tool changer: Laterally fixed, 10 positions
Max. tool diameter: 260 mm
Max. tool length: 295 mm
Tool length control: For precise tool measurement.
Saw: Tool holder for Drive5CS saw, fine-cutting saw blade Ø 350 mm

Drilling gear unit
Main drilling gear unit: V12/32 HIGH SPEED 7500.
Vertical spindles: 12 (32 mm pitch)
Speed: 1500–7500 rpm
Drilling depth: Max. 38 mm
Horizontal drilling units:
H4X: 4 spindles in X direction
H2Y: 2 spindles in Y direction
Max. drilling diameter: 20 mm (horizontal)
Grooving saw: Ø 125 mm, 0°/90° pivoting

Operating voltage
Voltage: 3 x 400 V, 50 Hz (three-phase, CEE connection)

Compressed air consumption
Consumption: Approx. 100–200 Nl/min at a minimum of 7 bar (Supply pressure)

Vacuum system
Capacity: 290/345 m³/h (two-part system)
Clamping devices:
6 vacuum clamps
2 multi-clamps for R-table
Vacuum connection for templates
Supply unit: For pneumatic clamping elements

Software
woodWOP for machine
woodWOP DXF Import Basic (EPL)
woodWOP Office Professional (EPL)
3D CNC simulation (single-user license)

Operation
Operator terminal (10 m)
PC keyboard
Wired manual control for run-in operation
Comfort package for operation
USB hard drive for image
Network connection for Ethernet CNC
Including tools and accessories (see photos)
Weight: approx. 3750 kg
