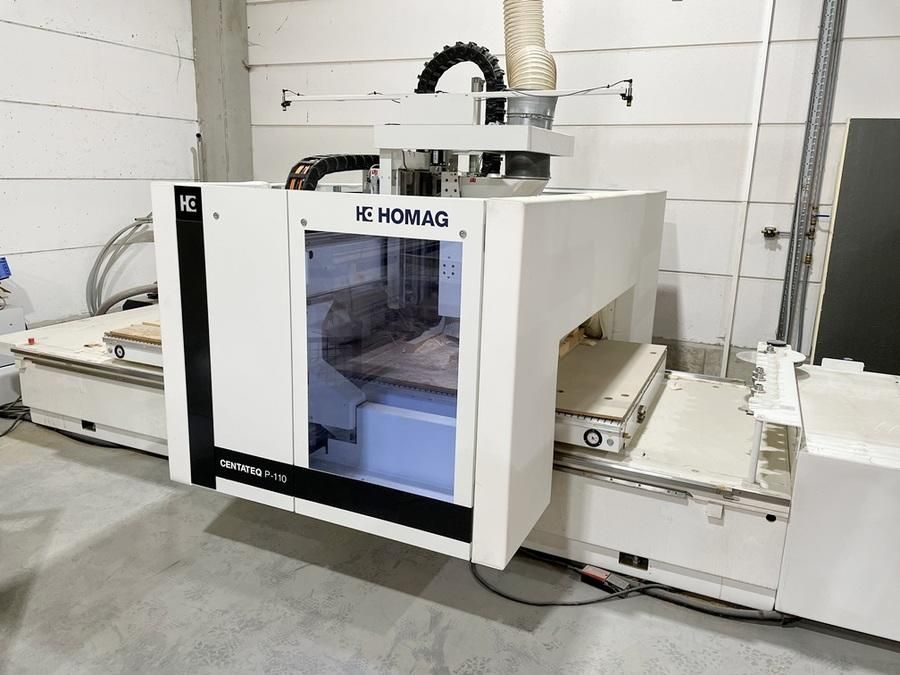

Homag CENTATEQ P-110 Venture BMG110/31/F/R

CNC machining center
CNC-controlled processing center in moving gantry design, for milling and drilling workpieces made of wood or wood-like materials
Travel speeds: X/Y-axis 60 m/min / X-axis 35 m/min / Y-axis 50 m/min / Z-axis 15 m/min

- Program-controlled suction hood
- Max. workpiece length, all units: single loading 3100 mm / pendulum loading 1025 mm
- Max. workpiece length, tool diameter 25 mm: single loading 3275 mm / pendulum loading 1025 mm
- Max. workpiece width, front stop: All units 1250 mm / milling tool diameter 25 mm 1250 mm
- Maximum workpiece width, rear stop: All units 1230 mm / milling tool diameter 25 mm 1405 mm
- Workpiece thickness: Max. 260 mm including clamping device
- Operating voltage 400 Volt, 50 Hz
- EC conformity (CE)
- BUMPER safety technology with pressure-sensitive switching buffers in accordance with EN1760-3
- Drilling gear V12/32MM High Speed 7500, 1500 - 7500 rpm frequency-controlled, 2.3 kW
- Grooving saw 0°/90° tiltable, 1500 - 7500 rpm frequency-controlled
- H4X drilling unit, 1500 - 7500 rpm frequency-controlled
- Drilling unit H2Y, 1500 - 7500 rpm frequency-controlled
- Processing spindle 12 kW DRIVE5CS, frequency converter for electronic speed control
from 1500 - 24000 rpm, 12 kW for S6 operation, 9 kW for S1 operation
- Unit carrier for two Z-axes
- Tool changer magazine 8 places at the rear
- Linear tool changer fixed on the side 10 places
- Tool length control
- Tool holder saw DRIVE5CS
- Fine-cutting saw blade diameter 350 mm
- Basic structure raster table /31
- Raster table top
- Lateral and longitudinal stop pins 140 mm
- Two-part vacuum system for pendulum operation
- Vacuum connection for templates
- Supply unit for pneumatic clamping elements, right and left working field
- Laser positioning aid
- Vacuum clamp for grid table 140 x 130 x 45 mm LBH
- Multi-clamp for R-table 10 - 100 mm
- 10 m sealing cord diameter 8 mm for grid table
- Vacuum system 290 / 345 m3/h
- Energy saving function
- POWERCONTROL with POWERTOUCH
- PC keyboard: German
- USB hard disk for image
- Mobile operating terminal (10 m)
- Permanently mounted control cabinet
- TAPIO READY
- Network connection Ethernet CNC
- Manual operation wired for run-in operation
- Comfort package operation
- woodWOP for machine
- woodWOP DXF-Import Basic (single user license)
- Record and evaluate machine data - MMR
- woodWOP Office Professional (single user license)
- Language selection German
- Documentation on data carrier
- Documentation on paper
- INTELLISERVICENET
