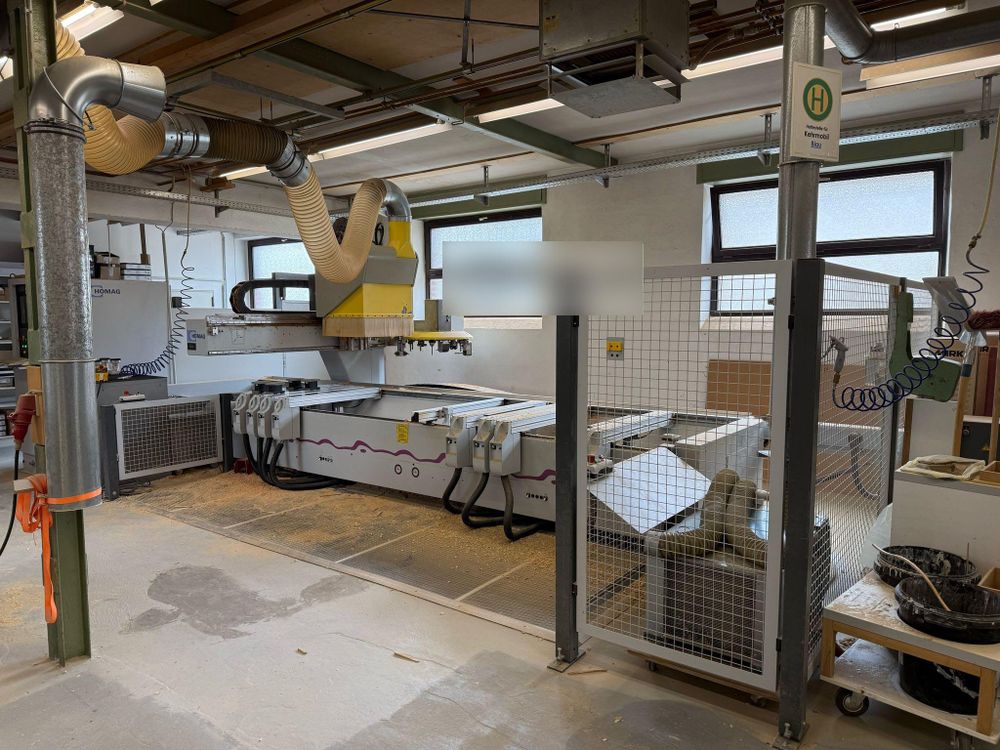

Homag OPTIMAT BOF41/45/K

CNC Machining Centers
Description:
Brief description of the equipment:
- Console clamping table "K"
- 4 lifting rails on the consoles
- POWER CONTROL - PC 85 control system
- 14.5 kW main spindle, vector-controlled, water-cooled
- Main spindle interface, including pneumatic interface and C-axis swivel drive (torque control / 3-point support)
- 18-station spindle changer
- 1 pick-up space for Castor unit
- Drilling head with 17 vertical spindles, 11 spindles in the X direction, 7 spindles in the Y direction
- Laser positioning aid
- Pendulum machining

Technical specifications:
- Max. workpiece length 4500 mm
- Max. workpiece width 1300 mm for milling with tool diameter 20 mm
- Max. 1150 mm for all units
Workpieces larger 1150 mm must be positioned at the rear longitudinal stops.
- Workpiece thickness max. 60 mm with standard clamps, max. 200 mm
with clamping templates (provided by customer)
- Total extraction capacity 5,000 m³/h
- Air speed 28 m/sec
- Total electrical connection load 27 kW
- Rated current 49 A (50 A fuse)
- Compressed air min. 7 bar (R1/2" female thread connection)
- Installation dimensions: 7,250 x 4,250 x 2,600 mm
