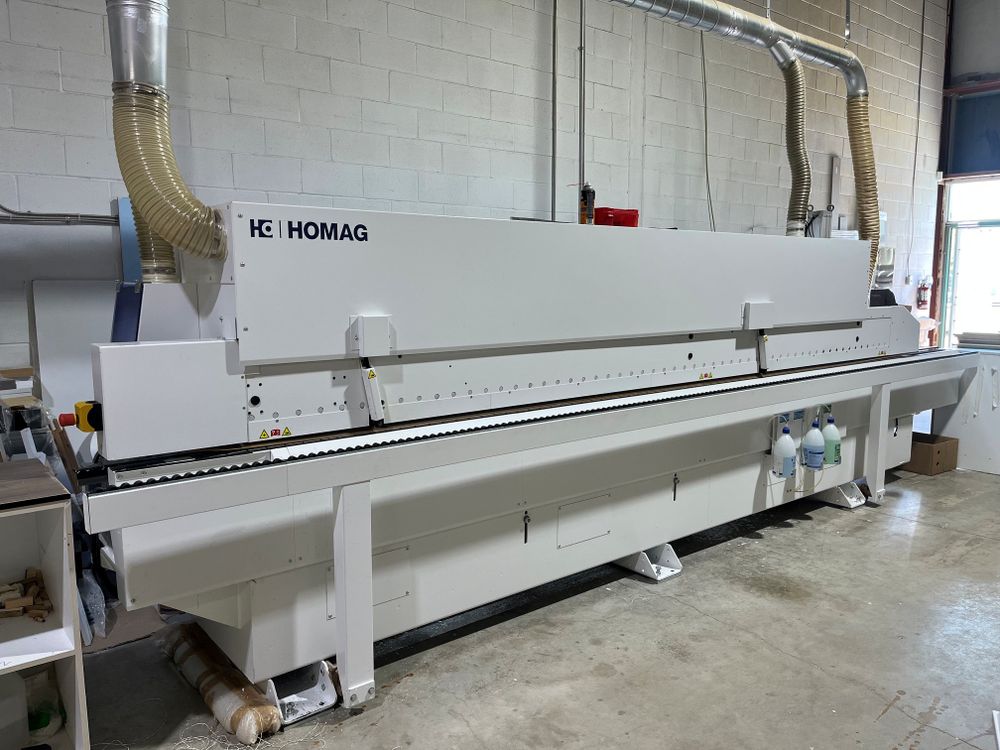

Homag Edgeteq S‑380 Optimat KDF 650 C

Edgebander
Key Features :
PowerTouch control system with 24” full HD multi-touch display
PUR / EVA gluing system with automatic purge and temperature control
Pre-milling unit (2 motors) for edge preparation prior to gluing
Automatic edge feeding system (coil and strip processing)
Panel pre-heating zone for improved adhesive performance
End trimming, fine trimming & contour trimming units
Corner rounding unit (servo-controlled)
Multi-stage scraping and finishing stations
Anti-static, detergent spray, and buffing units
Continuous-duty industrial machine designed for multi-shift production

Working Capacity / Material Specifications:
Edgeband Thickness:
Coils: 0.4 – 3 mm
Strips: 0.4 – 12 mm

Workpiece Dimensions:
Thickness: 8 – 60 mm
Minimum Length: 160 mm
Minimum Width: 70 mm

Feed Speed:
8 – 20 m/min
Up to 14 m/min with corner rounding

Processing Units / Aggregates :
Pre-Milling Unit: 2 x 2.2 kW / 12,000 RPM
End Trimming Unit: 2 x 0.35 kW / 12,000 RPM
Fine Trimming Unit: 2 x 0.55 kW / 12,000 RPM
Corner Rounding Unit: 2 x 0.40 kW / 12,000 RPM

Electrical Specifications:
Voltage: 400Y / 230 V (Transformer Included)
Frequency: 60 Hz
Phase: 3‐Phase
Current: 39 Amps
Total Power Requirement: approx. 28 kW

Dust Extraction & Air Requirements :
Extraction Ports: 120 mm, 140 mm, (2x) 100 mm
Minimum Extraction Volume: 2048 CFM
Compressed Air: 26 CFM @ 6 bar (87 PSI)

Machine Dimensions & Weight :
Length: 6,075 mm (≈ 20 ft)
Width: 1,604 mm (≈ 5.2 ft)
Height: 2,266 mm (≈ 7.5 ft)
Weight: 2,940 kg (≈ 6,481 lbs)

Condition Notes :
2023 machine, lightly used
Excellent mechanical and cosmetic condition
Fully functional and production-ready
Clean shop environment
