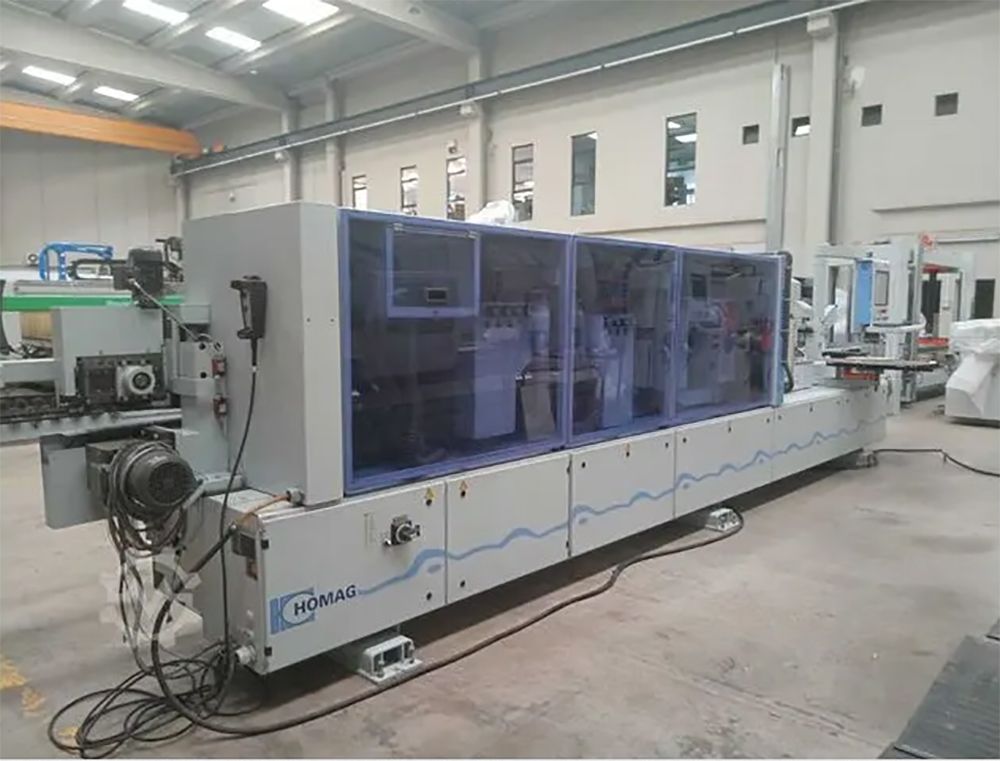

Homag KAL 210 AMBITION 2264

TECHNICAL DETAILS:
Edgebanding thickness: max. 20 mm
Maximum gluing height: 60 mm
Maximum roll material thickness: 3 mm
Workpiece width: min. 60 mm
Maximum feed rate: max. 25 m/min
Feed: continuous
Electric height adjustment: available
Pressure: top pressure belt
Preheating zone: available
Granulate glue system: with prefabricated container
Glue container: interchangeable/variable

Spraying device: available
Pre-milling unit: available
Trimming group: with 2 motors
Milling stations: flush/radius/chamfer, 1 available
Corner copying unit: with 2 motors
Edge scraper: profile and planer
Polishing unit: available
Strip magazine: available
Units: synchronized units with NC axis/axes
Machine version: left side
Quick-change units: available

MACHINE DETAILS:
Remote control: PowerControl PC 22
Weight: 5,000 kg
Machine length: 7,845 mm
Standards: CE regulations
