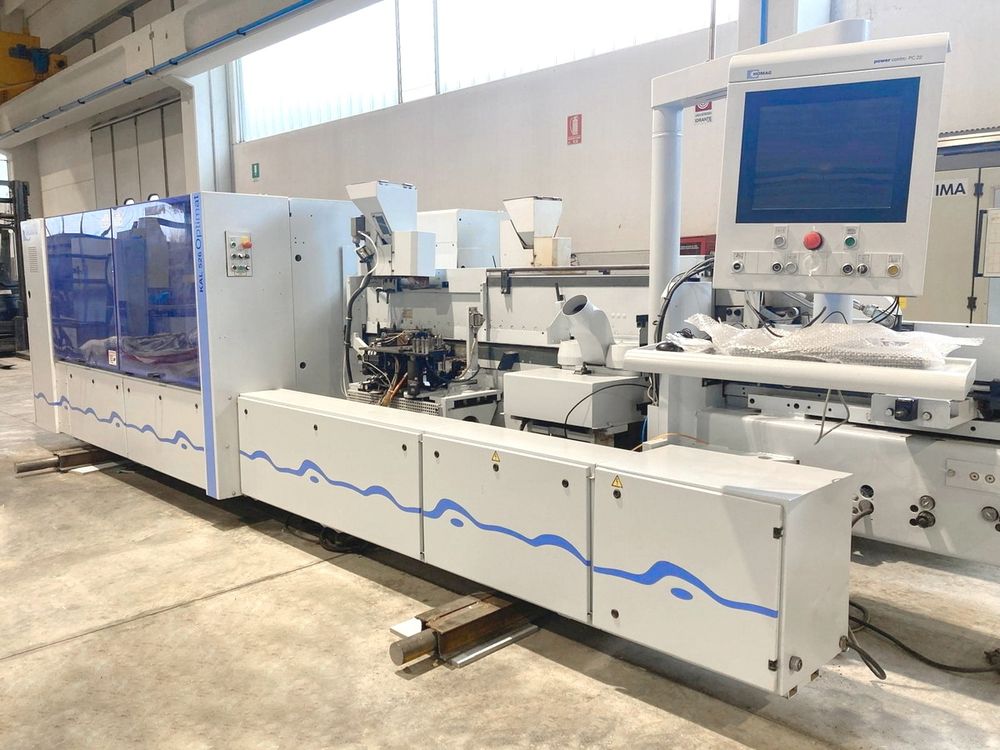

Homag KAL 526/5/A3/25/S2

Double-Side Edgebander
Min/max edges (band) thickness in rolls mm 0,3 - 3
Min/ max panels thickness mm 12 - 40
Min /max working width mm 250 - 2500
Numerical Control: Power Control PC 22
Feeding speed (adjustable) m/min 10 - 32
Top motorized pressure belt
Anti-sticking liquid spraying unit
Pre-Milling Unit (Vertical joint trimmers) 2 x Kw 4 at 9.000 RpM
Glueing Unit (Hot Melt + Quick Melt system): A3
Pressure Zone (manual adjustment): "A"
Edge coils supporting unit with N. 2 coils
Snipping Unit: HL 84 (2 x Kw 0,22 at 12.000 RpM)
Fine Trimming Unit (2 x Kw 0,4 at 12.000 RpM)
Finish processing unit (Glue scraper + Buffing unit): FA 11
Spraying & polishing unit
