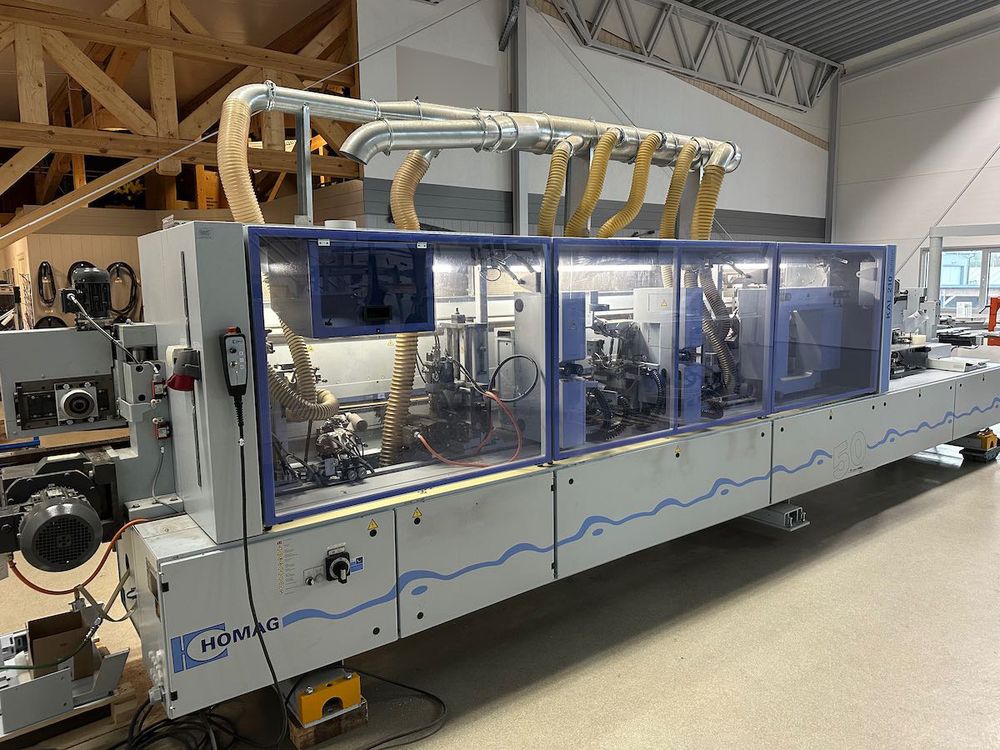

Homag KAL210 / EDITION

Single-sided machine for processing straight workpiece edges.
Edging and finishing of various edging materials, in through-feed along and across.

POWER CONTROL control PC22
Control system Windows PC
Hardware:
PLC control
Integrated stretch control for contactless control of the processing units
Operating system Windows XP
Industrial PC
TFT display 10″ with Touch Screen, operation of selection and setting of all necessary production parameters such as:
program selection and change of workpiece thickness.
PC keyboard and mouse
USB connection
Network connection
Remote control
Setting operation, start feed, emergency stop switch

Unit equipment:
-Release agent application unit
-Joint milling unit
-Glue unit A20 with 2 rollers
-Cutting unit HL84
-Pre-milling unit
-Form milling unit FF32
-Universal milling unit UF10
-Profile sickling unit PN10
-Finishing unit (Glue joint sickling unit+polishing pulleys)

Technical data
Minimum workpiece width:
at thickness 12-22mm, 60mm
at thickness 23-40mm, 105mm
Workpiece overhang 30mm
Workpiece thickness 12-60mm
Strip material on roll 0.3-3mm
Strip cross-section max:
At PVC 135mm2
At veneer 100mm2
Strip material strips 0.4-20mm
Edge cross-section at strips 900mm2
Working height 950mm
Pneumatics 6 bar
Current 400 volts, 50 Hz, 3 phase
