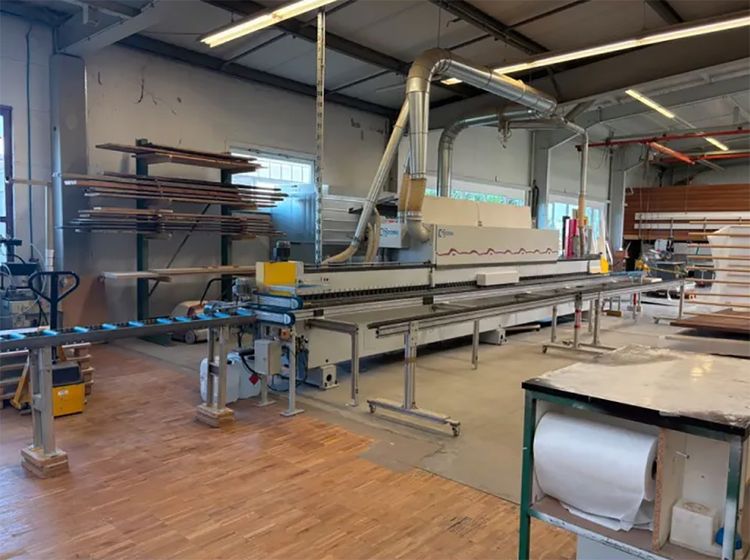

Homag KR79

Edge Banding Machine – Business Closure
The machine is offered as part of a business closure sale.

Technical Specifications:
Workpiece Thickness: 12–60 mm

Edging Material:
Strip: 0.4–20 mm
Roll: 0.3–3 mm (max Ø 900 mm)

Feed Speed: 18–24 m/min (stepless adjustable)
Joining milling: 2 × 3 kW, 150 Hz, 9,000 rpm
Cutting unitHL 83: 2 × 0.5 kW, 200 Hz, 12,000 rpm
Pre-milling: 2 × 1.5 kW, 200 Hz, 12,000 rpm, height adjustable
The shape cutter(FK 13): 2 × 0.55 kW, 200 Hz, 12,000 rpm, 8-position revolver
Bubbling unit: 2 × 0.25 kW, oscillating, top & bottom
Control System: HOMAG HOMATIC NC 21
Electrical Data: 380/400 V, 50/60 Hz; 24 V control; total current ~56 A
Weight & Dimensions: ~6,000 kg; ~9,900 × 1,400 × 1,800 mm

Included Accessories:
2 sets of diamond jointing cutters (max. material height 60 mm)
Spray unit for release agents
2 PU gluing units (replacement)
Service station for cleaning & maintenance of PL gluing units
Hot-melt glue station
Freezer for PU gluing units
Double roll magazine
Kapp unit
Flush trim unit
Profile cutters (top/bottom) with 8-position changer
1 mm / 1.2 mm / 2 mm rounding cutters
45° chamfer cutter
Standard milling unit (groove or rebate)
Profile and surface scraper blades
Sanding unit
Cleaning spray unit
Schwabbel unit
Sword brushes top & bottom, 800 mm depth, with spray head for surface cleaning
Roll conveyors for infeed and outfeed, including extra wide
Internet access converted to Ethernet
Maintenance tools included
Condition: The machine is well-maintained, fully functional, and ready for production.
