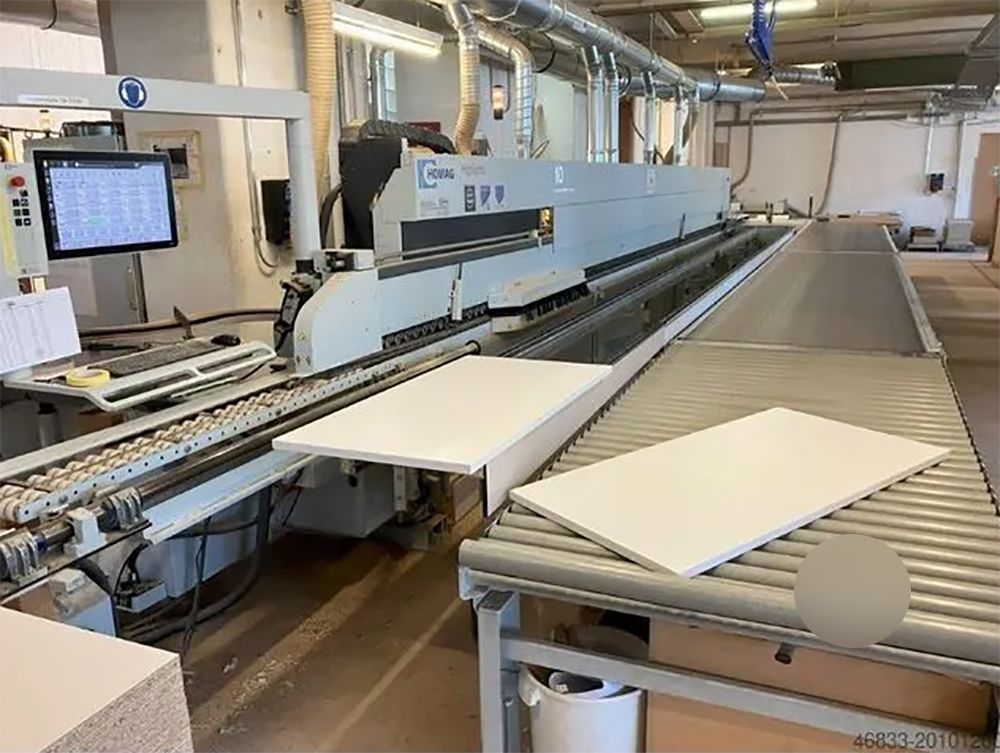

Homag Profi KAL 330/10/A6/L

One-sided laser and PU edge banding machine including Ligmatech workpiece return system.
Return System Type: ZHR05/L/115

Features:
Laser activation unit: Performance
PU65 adhesive application unit
Balti melting device
Feed speed: 18–25 m/min
FK31/20-cycle Powertrim
FK31/F
Feed speed: 15–25 m/min
Workpiece thickness: 8–60 mm
Minimum workpiece width: 60 mm
Edge material (rolls): 0.3–3 mm
Edge material (strips): 0.4–20 mm

Control System: PC22
Control Panel: Powertouch

Units and Gluing:
S2 joint milling unit
Automatic horizontal adjustment for joint milling
Automatic vertical adjustment for joint milling
Lasertec activation unit: Performance
Basic gluing unit A20 with expansion module
Magazine extension for 6 rolls
Horizontal free-standing coil table
Continuously adjustable edge pressure device
Separator suction device for strips
Servo edge feeder
Edge thickness measurement for rolls
Quick-release system for application unit QA/PU
Interchangeable PU65 application unit
Automatic glue dosage control
Balti melting device
Automatic pressure zone adjustment
Wetting device for pressure zone

Top/Bottom Release Agent Spraying Unit
HL86 End Trimming Unit (chamfer/straight 0.22 kW servo)
Pneumatic adjustment of end trimming motor
Automatic end stop adjustment for end trimming

BF20 Pre-Milling Unit
Pneumatic adjustment for pre-milling unit

MF21 Servo Multi-Milling Unit
Top Release Agent Spraying Unit
FK31/20-Cycle Powertrim Profile Milling Unit
FK31/F Profile Milling Unit
MN21 Servo Multi-Scraper with Chip Breaker
FA11 Finishing Unit (top/bottom), includes:

Glue joint scraper
Cleaning agent application (top/bottom)
Buffing unit
Pneumatic adjustment of FA11

Additional Equipment:
Application of solid wood edges
Automatic adjustment for infeed fence
Infeed extension 500 mm
Sliding carriage
Scissor-type workpiece support
Scissor-type support extension
Workpiece thickness 8 mm instead of 12 mm
Potential-free contact
Flexible edge sequence control software
Set-up in the gap

Workpiece Return System ZHR 05/L/115
Manufacturer: Ligmatech
Year of Manufacture: 2013

Workpiece Parameters:
Length: Min. 300 – Max. 2500 mm
Width: Min. 60 – Max. 1100 mm
Thickness: Min. 8 – Max. 60 mm
Weight: Max. 50 kg
Feed speed: 8 – 30 m/min
