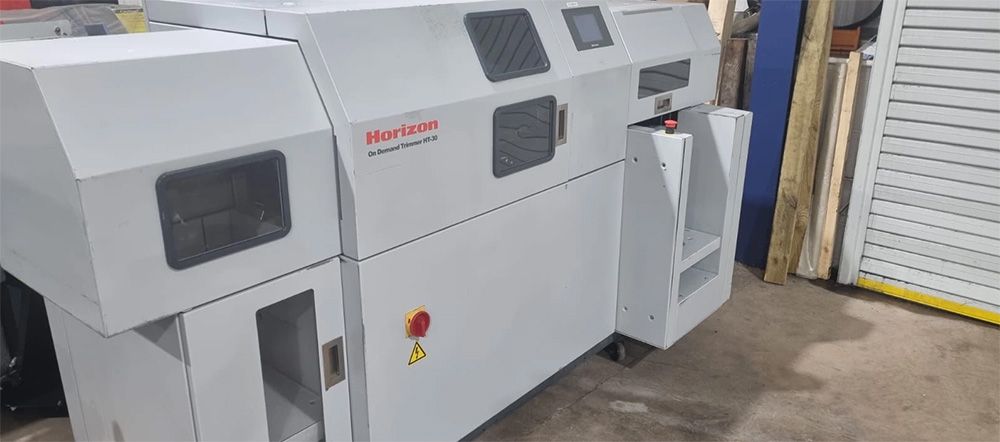

Horizon HT-30

Three knife trimmer
Untrimmed Book Size:
Spine Length × Fore-edge Length
Max. 320 x 235 mm / 12.600” x 9.255”
At maximum by using the optional cutting module for landscape size
Max. 320 x 233.8 mm / 12.600” x 9.200”
at maximum by using the optional cutting module for A6 size
Min. 204 x 136 mm / 7.870” x 5.350”
Min. 152 x 136 mm / 5.985” x 5.350”
At minimum by using the optional cutting module
Min. 152 x 107 mm / 5.985” x 4.210”
At minimum by using the optional cutting module for A6 size
Finished Book Size:
Spine Length × Fore-edge Length
Max. 305 x 230 mm / 12.010” x 9.055”
Max. 305 x 300 mm / 12.010” x 11.810”
At maximum by using the optional cutting module for landscape size
Max. 305 x 133.9 mm / 12.010” x 5.275”
At maximum by using the optional cutting module for A6 size
Min. 200 x 134 mm / 7.870” x 5.280”
Min. 148 x 134 mm / 5.830” x 5.280”
At minimum by using the optional cutting module
Min. 148 x 105 mm / 5.830” x 4.130”
At minimum by using the optional cutting module for A6 size
Landscape book size is A4, B5, A5, 8.5” x 11”, 7” x 8.5”
(by using the optional cutting module for each landscape size)
Trim Width Max. 99.9 mm / 3.930”
Min. 2.0 mm / 0.080”
Trim Height Max. 51 mm / 2.0”
Book Pile Height
Clamp System and Pressure: Hydraulically Operated
Automatic Settings : 4kN / 5.5kN / 8kN 3 Steps Selectable
Manual Settings : 1.5kN / 3kN / 5kN / 6.5kN / 8kN 5 Steps Selectable

Production Speed:
Max. 440 books per hour (Book Thickness 25 mm, 2 piled books)
Max. 520 books per hour (Book Thickness 10 mm, 5 piled books)
Voltage / Frequency
3-phase 400 V, 50 / 60 Hz / 1,25 kw
weight: 1.020kg
Machine Dimensions: W2350 x L1160 x H1370 mm
