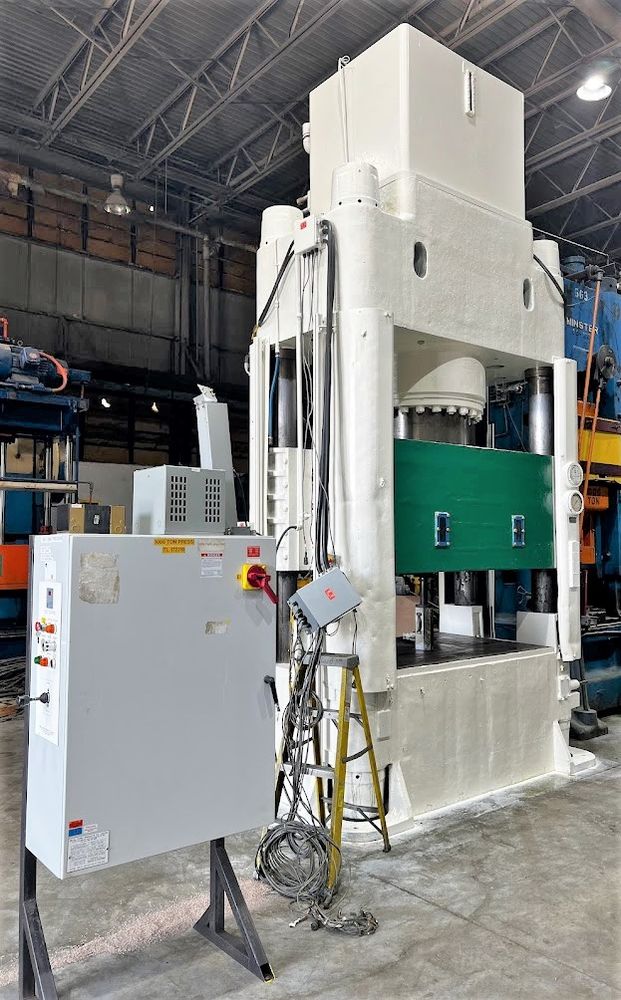

HPM HPM 6931 1,000 ton @ 2500 psi

Press force 1,000 ton @ 2500 psi
Max stroke 36"
Max daylight to bed 48"
Bed and ram area 72" x 48" (RL x FB)
Ram speeds 260 RAPID ADVANCE / 12 PRESSING / 260 RETURN inches per minute
Main cylinder 32" DIA. bore
Floor to bed 36"
Current press controls Mizer BMZ-1100 solid state press controller
Reconditioned press controls Updated with Allen-Bradley MicroLogix 1400 or similar controller
Current hydraulic unit Oilgear No. R-100, 42 GPM pump, 300 GAL tank, HPM radial piston pump: 7R-100
Reconditioned hydraulic unit Replaced with more modern or new unit
Electric motor 40 HP GE motor 3 phase 60 Hz, 42 amps, can be wired for 230V/460V/575V
Overall dimensions 9' x 10' (RL x FB) x 18' high, 10' x 5' footprint
Approx. weight 100,000 lbs
Floor standing bed
2 hydraulic safety restraint cylinders on ram
4-post cast iron frame construction
