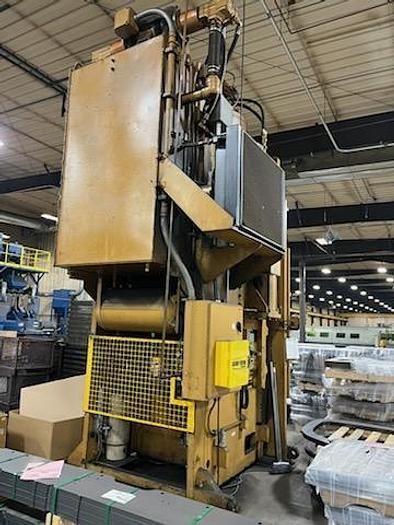

Standard DCSS700 700 ton

Press Force: 700 ton
Punching Capacity: 350 ton
Ram Size: 40 × 38 in
Bed Size: 55 × 40 in
Bed Height: 41 in
Distance Between Housings: 55 in
Ram Stroke: 12 in
Maximum Open Height: 21 in
Minimum Closed Height: 9 in
Main Motor Power: 100 HP
Ram Speed Approach: 65 ipm
Ram Speed Press: 15 ipm
Ram Speed Return: 87 ipm
Approximate Cycle Time with 6 in Stroke: 11.9 sec
Light Curtains
Removable Bed and Bed Plates with T-Slots
Air Counterbalance Cylinders
Rear Safety Barrier
Removable Bed and Ram Bolsters
Machine Weight: 115000 lbs
Machine Dimensions: 10 × 8 × 20 ft
