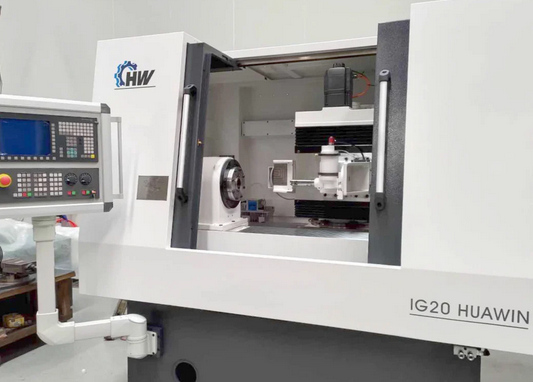

Huawin IG 20

X Axis Travel: 150 mm
Y Axis Travel: 100 mm
Z Axis Travel: 600 mm
Swing Diameter: 200 mm
Minimum Spline Inside Diameter: 20 mm
Maximum Spline Inside Diameter: 45 mm
Minimum Spline Bottom Diameter: 25 mm
Maximum Spline Bottom Diameter: 55 mm
Minimum Spline Width: 5 mm
Maximum Spline Width: 15 mm
Minimum Broaching Length: 100 mm
Number of Splines: 1 – 10
Spindle Speed: 16500 rpm
Air Connection: 5 bar
Total Power Required: 20 kVA
Machine Dimensions: 2250 x 1700 x 2200 mm
Machine Weight: 4500 kg
