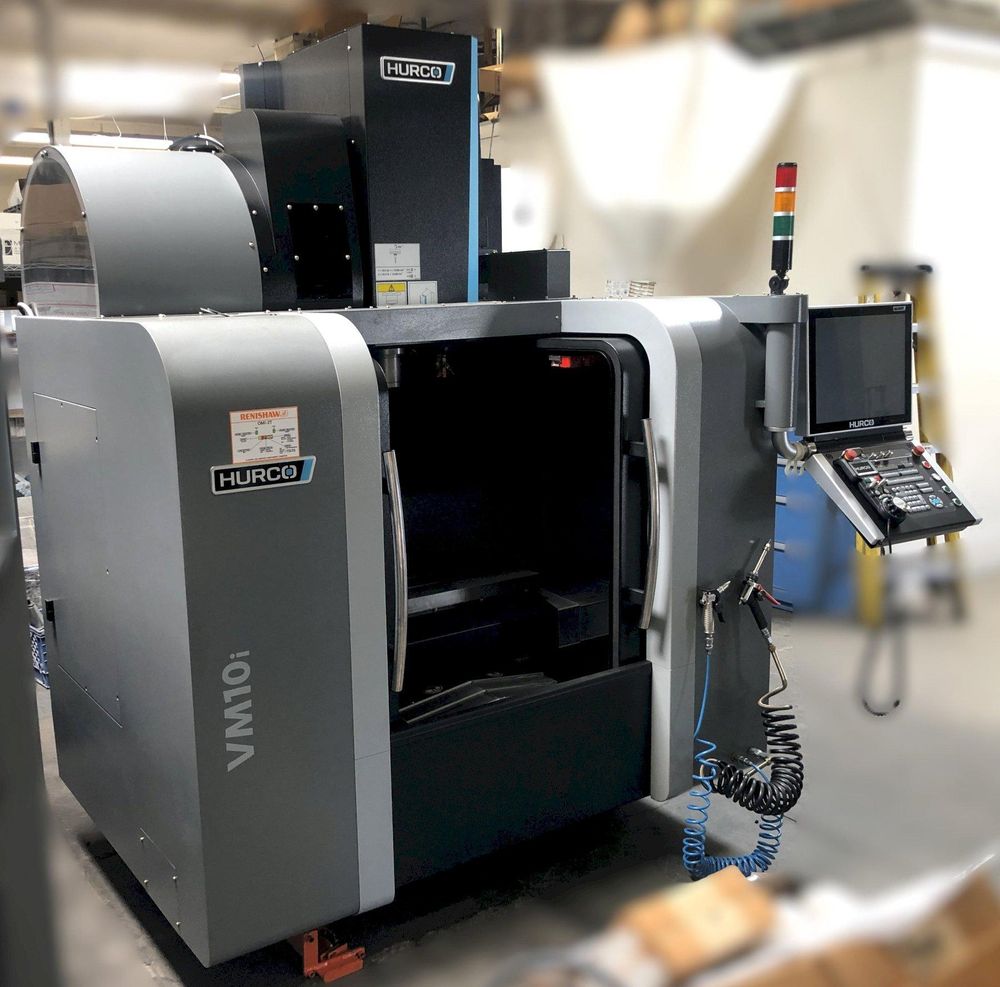

Hurco VM10i 3 Axis

HURCO VM10i
Year 2023

X-Axis Travel 26 inches
Y-Axis Travel 16 inches
Z-Axis Travel 20 inches

Table working surface W x D 30 in x 15.98 in
Spindle Nose – Table 4.01- 24.01 inches
T-Slots (DIN 650) 3 x 18 H8 x 100
Tableload max. / Rotaryload (uniform distribution) 3306.69 pounds
Spindle Taper (DIN 69871 A) CAT-40 / BIG-PLUS
Spindle Speed max. (rpm) 12.000 rpm
Spindle Power 15 hp
Spindle Torque max. 54.58 ft-lbs.
Feedrates: Rapid traverse X-Axis / Y-Axis / Z-Axis 91.86 / 91.86 / 91.86 (ft/min)
Rapid traverse A-Axis / C-Axis 25 / 25 rpm
Number of stations 24
Weight 6285 pounds
Floor Space Required (doors open, incl. control and chip conveyor) 126.30 in x 115.35 x 100.95 inches
Weight 6285 pounds

Equipped With
Hurco VM10i 3-Axis Vertical Machining Center Equipped with 12k RPM Spindle
Renishaw Probe, Tool Pre Setter, Remote Jog, Coolant Tank and Spindle Chiller
- BANK REPO / OPEN TO OFFERS -
