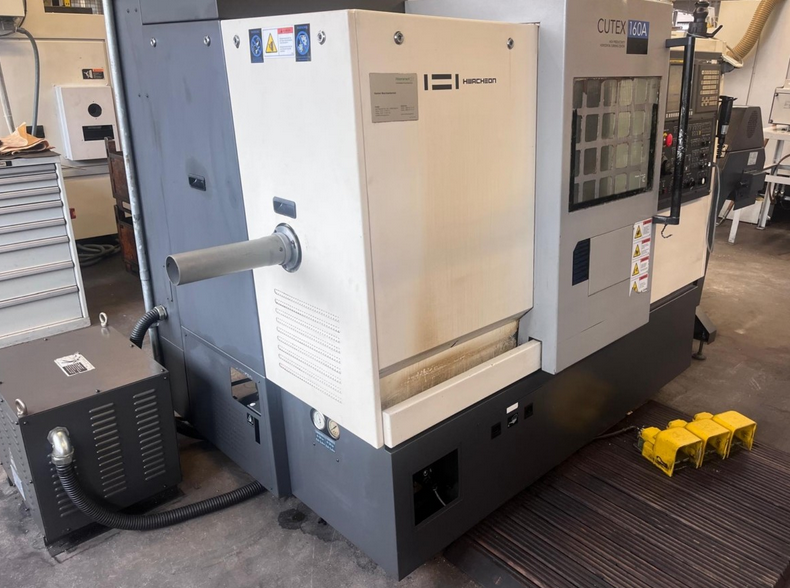

Hwacheon Control Fanuc 0i TD 6000 rpm CUTEX 160A 2 Axis

Rapid traverse X-axis 36 m/min
Rapid traverse Z-axis 36 m/min
Travel X-axis 170 mm
Travel Z-axis 335 mm
Control Fanuc 0i TD
Interface Manual Guide
Drives Fanuc
Tool turret 12 stations
Turret index time 0.15 s/station
Swing over bed 550 mm
Max turning diameter 300 mm
Standard turning diameter 170 mm
Max turning length 300 mm
Chuck size 6"
Chuck type Kitagawa B-206 Ø169 mm
Spindle nose A2-5
Spindle speed 6000 rpm
Spindle bore 56 mm
Max bar capacity 45 mm
Spindle motor 11/7.5 kW
Feed motor X/Z 3.0/1.8 kW
Tailstock quill diameter 60 mm
Tailstock quill stroke 80 mm
Tailstock taper 4 MT
Coolant system 6 bar
Programmable quill
Automatic tailstock
Foot switch for clamping devices
Hydraulic unit
Electric handwheel
Central lubrication
Standard tool holder
Tool measuring arm
Tool life monitoring
Oil mist extraction system
Accessories 7 boring bar holders
