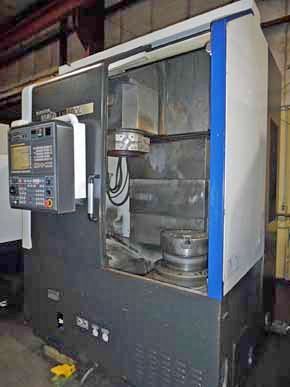

Hyundai LV-500 L Vertical Turret Lathe

Ref : 2313529-3-CP

Condition : Used

Manufacturer : Hyundai

Model : LV-500 L

Short Description : Vertical Turret Lathe

Year(s) : 2012

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Last check : 01 Sep. 2023

Hyundai-Wia LV-500 L Fanuc 32iA
2012

Description Spec Values
Capacity: Table / Chuck Diameter / Maximum Swing 15" / 23.2"
Maximum Cutting Diameter / Maximum Cutting Height 21.6" / 23..6"
Spindle: Spindle Speeds 20 - 2,000 RPM
Motor 43 HP
Turret: Number of Positions (all can be live) 8 Stations
X-Axis Travel (horizontal travel) 12.7"
Z-Axis Travel 24.617"
Rapids: Rapid Traverse (X / Z) 787 / 708 IPM
Dimensions: Floor Space (L x W x H) 109" x 77" x 105"
Weight (approx) 23,000 Lbs

Equipped With
Additional Info.: 15" 3-Jaw Hydraulic Chuck
High / Low Chucking Pressure
Chip Conveyor
Rigid Tapping
