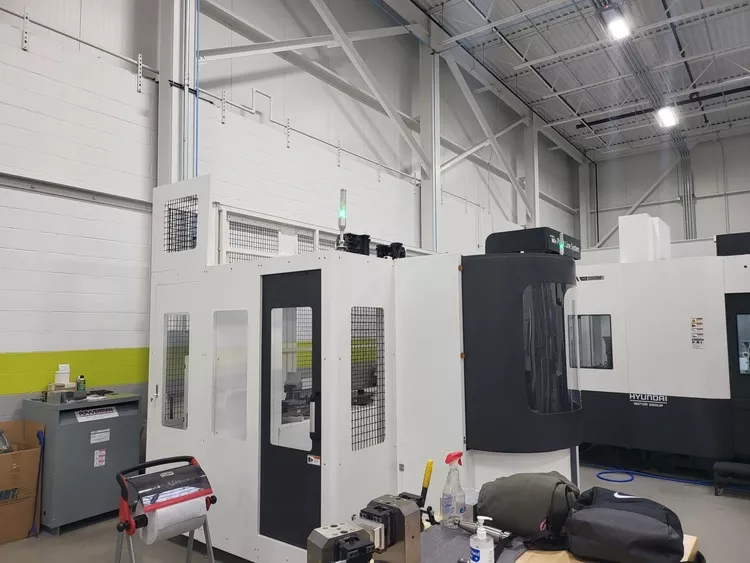

Hyundai WIA HS5000M 4 Axis

X-axis travel 33.5"
Y-axis travel 27.6"
Z-axis travel 29.5"
B-axis travel 0.001 degrees

Control FANUC 31iB CNC control
Pallet size length 19.7"
Pallet size width 19.7"
Number of pallets 12

Pallet weight capacity 992 lb
Pallet surface to spindle center 3" – 30.5"
Pallet center to spindle gage line 5.9" – 35.4"

Workpiece dimensions 30.7" depth x 38.6" height
Spindle speed 15,000 RPM
Spindle taper #40 Big Plus
Main motor 49.6 hp

Rapid traverse rate X 2,362 in/min
Rapid traverse rate Y 2,362 in/min
Rapid traverse rate Z 2,362 in/min

Cutting feed rate 1,181 in/sec
Automatic tool changer capacity 240

Tool diameter 3", 5.5"
Tool length 17.7"
Tool weight 17.6 lb
Tool change time 1 sec

Machine weight 37,478 lb (without pallet system and toolchanger)
PLS pallet pool system with 12 pallets
1000 PSI thru spindle coolant
X, Y, Z scales
Fast data server
Renishaw TSR-27 tool setter
Renishaw RMP-60
Hydraulics to pallets
10 tombstones
