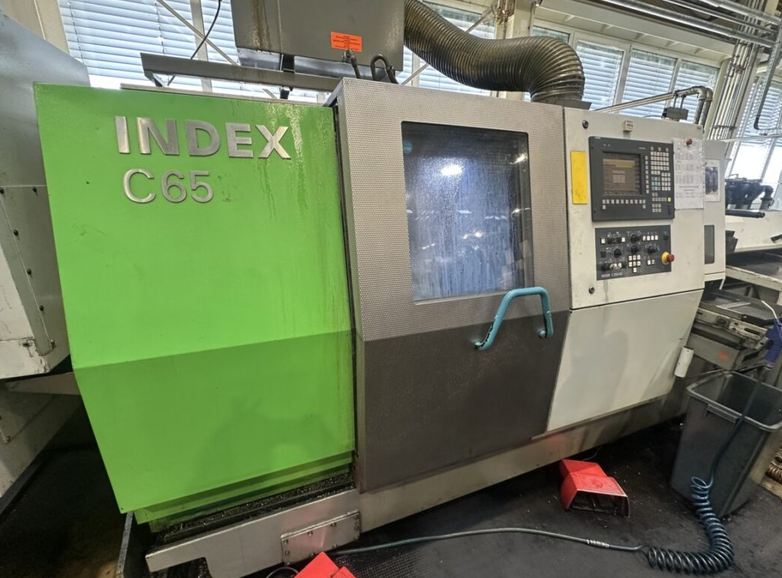

Index C200-4D 5,000 rpm C65 4 Axis

Rapid traverse X/Y/Z: 25/12/45 m/min
X-axis travel: 110 mm
Y-axis travel: 70 mm
Z-axis travel: 360 mm
X-axis slide travel: 150 mm
Z-axis travel: 600 mm
B-axis correction: ±1°
C-axis resolution: 0.001°
Control: C200-4D
Turning diameter: 140 mm
Turning length: 615 mm
Bar capacity: 65 mm
Spindle speed: 5,000 rpm
Maximum torque (40% / 100% load): 145 / 105 kW
Tool turrets: 3
Tool stations: 3 × 12
Tool interface: VDI 25 × 48 (DIN 69880)
Total power: 61 kW
Machine weight: approx. 6.5 t
Breuning Profimat 65.8×270/8 multi-channel bar feeder
Bar length capacity: 500–3000 mm
8 guide channels
Spindle insert tubes: Ø16 mm
Spindle insert tubes: Ø25 mm
Spindle insert tubes: Ø30 mm
Spindle insert tubes: Ø40 mm
Spindle insert tubes: Ø45 mm
Spindle insert tubes: Ø55 mm
Spindle insert tubes: Ø60 mm
Spindle insert tubes: Ø65 mm
BREUNING ILS-REX-7208 automatic workpiece unloader
