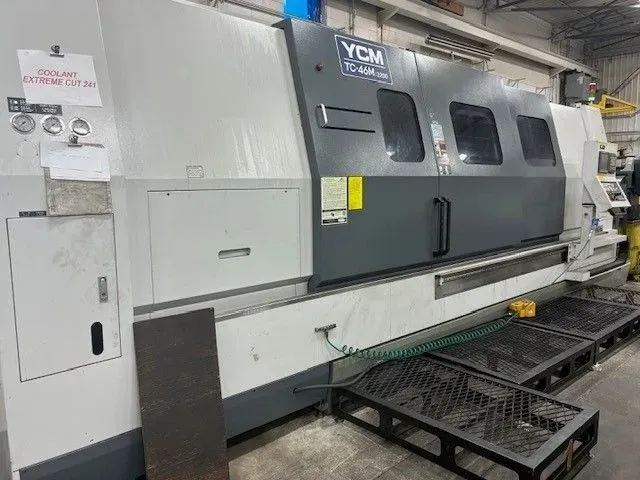

YCM FANUC YCM TXP 200 FS CNC Color Control 1,200 RPM TC-46M/3200 5 Axis

X1-Axis Travel: 15.94 in
Z1-Axis Travel: 125.98 in
C-Axis Indexing: 0.001°
Rapid Traverse X1: 640 ipm
Rapid Traverse Z1: 472 ipm
Control: FANUC YCM TXP 200 FS CNC Color Control
Programmable Tailstock
Automatic Tool Setter
Hydraulic Open/Close Steady Rest (1.9–12.2 in)
Custom Macro
Spindle Chiller
Live Tooling
Bar Capacity: 6.5 in
Swing Over Bed: 33.46 in
Turning Diameter: 28.53 in
Machining Length: 125.98 in
Distance Between Centers: 134.45 in
Spindle Speed: 1,200 RPM
Spindle Motor: 50 HP
Spindle Nose: A2-15
Spindle Bore: 7.1 in
Spindle Torque: 3900
Gear Ranges: 2
Milling Spindle Speed: 3,000 RPM
Milling Motor: 30 HP
Chuck Size: 18 in
10-Station BMT 85 Turret
(3) I.D. Rotary Heads
(3) O.D. Rotary Heads
Tailstock Quill Diameter: 5.91 in
Tailstock Taper: MT5
Tailstock Quill Travel: 5.91 in
Tailstock Travel: 119.1 in
3 Axes
Chip Conveyor
1300 Cutting Hours
