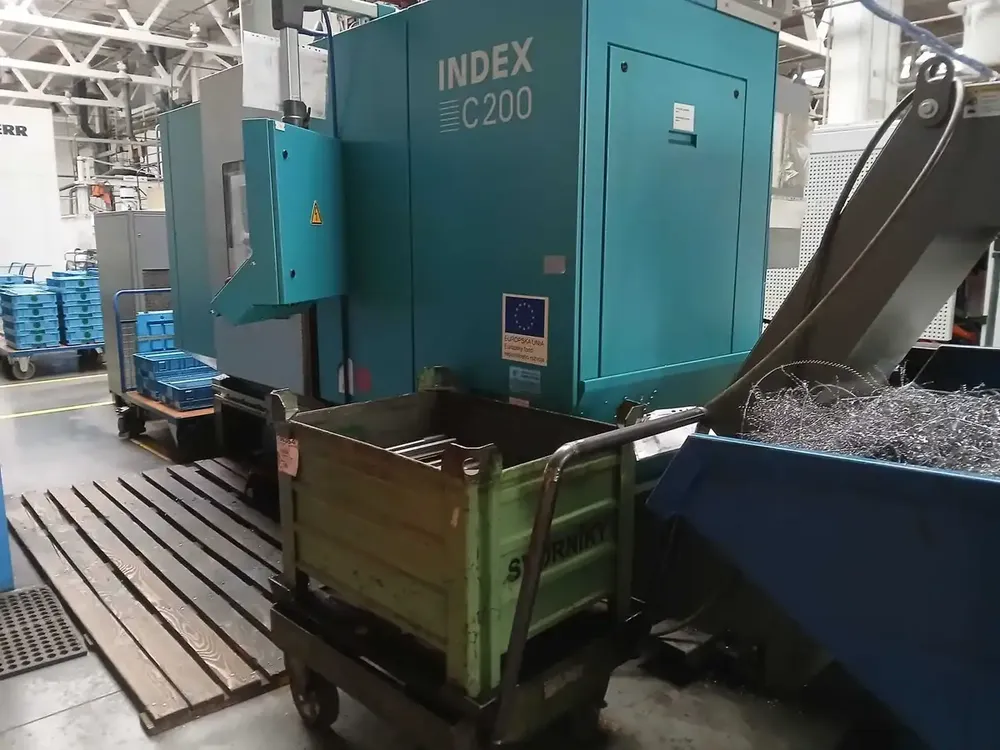

Index Siemens-based INDEX C200 / SINUMERIK 840D SolutionLine 5000 rpm C200 2 Axis

Power-on hours: ~49,960 h
Hydraulic hours: ~48,700 h
Main spindle hours: ~24,800 h
Counter spindle hours: ~24,000 h

Stroke: 20 mm
Clamping pressure min/max: 8 / 80 bar
Piston area pressure: 57 cm²
Piston thrust area: 57 cm²
Maximum force: 45.6 kN
Tensile force maximum: 45.6 kN

Control: Siemens-based INDEX C200 / SINUMERIK 840D SolutionLine
Control system: SINAMICS drive system
Control display: 18.5 in TFT screen
Control panel: PCT touch IP65
USB ports: 2x USB 2.0 (control panel)
NCU: 720.3 B PN
PLC: Siemens 317-3 PNDP / ET200S
Safety system: Safety Integrated / ProfiSafe

Main spindle diameter: 65 mm
Spindle nose: AD140 mm
Spindle bore: 85 mm
Material passage: 65 mm
Max spindle speed: 5000 rpm
Front bearing diameter: 110 mm
Spindle power (100% / 40%): 31.5 / 32 kW
Spindle torque (100% / 40%): 125 / 170 Nm
C-axis resolution: 0.00014°
C-axis accuracy: 0.01°
Hydraulic clamping system: 8–75 bar adjustable

X-axis travel: 110 mm
X-axis rapid traverse: 30 m/min
X-axis acceleration: 9 m/s²
X-axis force: 5000 N

Y-axis travel: 100 mm
Y-axis rapid traverse: 15 m/min
Y-axis acceleration: 9 m/s²
Y-axis force: 5000 N

Z-axis travel: 320 mm
Z-axis rapid traverse: 50 m/min
Z-axis acceleration: 9 m/s²
Z-axis force: 5000 N

Tool carrier 1
Tool carrier 2
Tool carrier 3

Revolvers: 3 units
Stations per revolver: 14
Tool shank size: D25x48 (DIN 69880)
Driven tool capability: all stations
Turret drive motor power (25%): 10 kW
Turret torque (25%): 16 Nm
Turret max speed: 8000 rpm

High-pressure coolant system
Coolant through main spindle
LED machine lighting
Chip conveyor system
Hydraulic locking turrets
