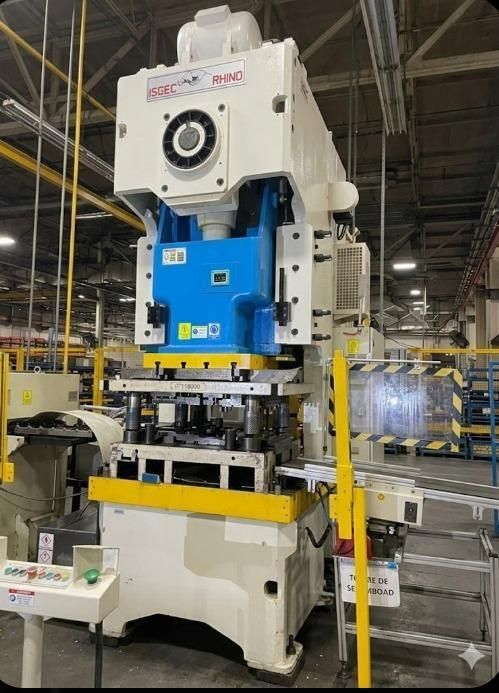

ISGEC RHINO PRESS GZ 160MT 176 ton

Capacity: 176 ton
Distance Off Bottom rating: 0.24 inch (6 mm)
Bolster R-L: 49.2 inch (1250 mm)
Bolster F-B: 31.5 inch (800 mm)
Slide R-L: 27.6 inch (700 mm)
Slide F-B: 22.8 inch (580 mm)
Number of suspension points: 1
Stroke length: 7.9 inch (200 mm)
Shut height (Stroke down adjustment up): 19.7 inch (500 mm)
Slide adjustment: 4.7 inch (120 mm)
Speed SPM (Continuous mode): 30-60 spm
Main motor: 20 HP (15 kW)
Maximum top die weight: 1100 lbs (500 kg)
Throat: 15.7 inch (400 mm)
Height of bolster surface from floor: 39.4 inch (1000 mm)
Height above floor, approx: 153.5 inch (3900 mm)
