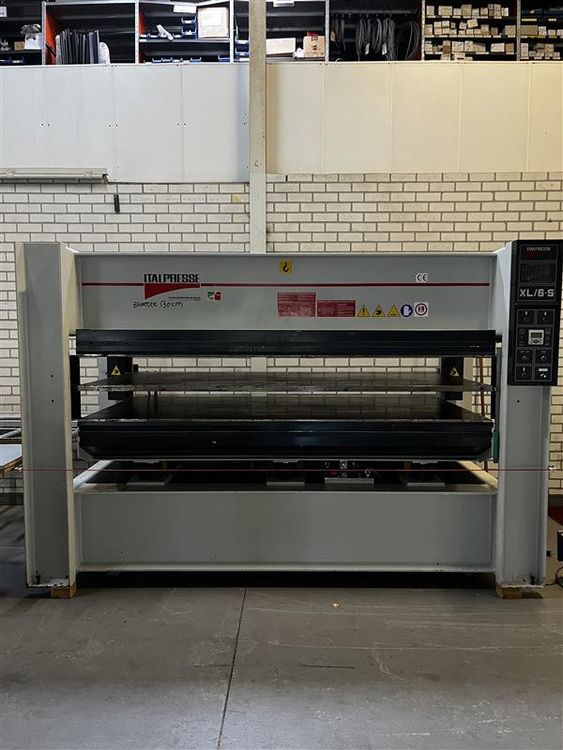

Italpresse "XL/6-S/25-13" BO
EUROPE (Western and Northern)
Hydraulic hot plate press
Heating by means of solid drilled plates
- Plate size mm. 2500x1300
- Heating plates no. 3
- Openings no. 2
- Opening size mm. 370
- Solid drilled plates mm. 40
- Ascending movement of the plate by means of 6 cylinders
- Solid drilled plates heated with thermal oil by means of an electric boiler complete with pump, oil plant and first oil filling.
- Maximum plate temperature 120 °C
- Oil boiler kw. 18
- Maximum pressure tons. 90
- Pressure cylinders diam. mm. 70 No. 6
- Hydraulic group power Kw. 1.5
- Automatic hydraulic pressure reset
- Mobile plate opening manual with push button
- Two push buttons to start the cycle
- Self-lubricating guides, placed diagonally for great flatness
- Emergency stop on all four sides of the press
- Safety lock of the plates for use during maintenance procedures
- Operator console that integrates a PLC that controls all press functions:
Automatic opening with timer, setting and readout
Press temperature setting and readout
Hydraulic unit pressure setting and reading
Boiler starts daily/weekly programming
Diagnostic system with error display
CE safety standard
