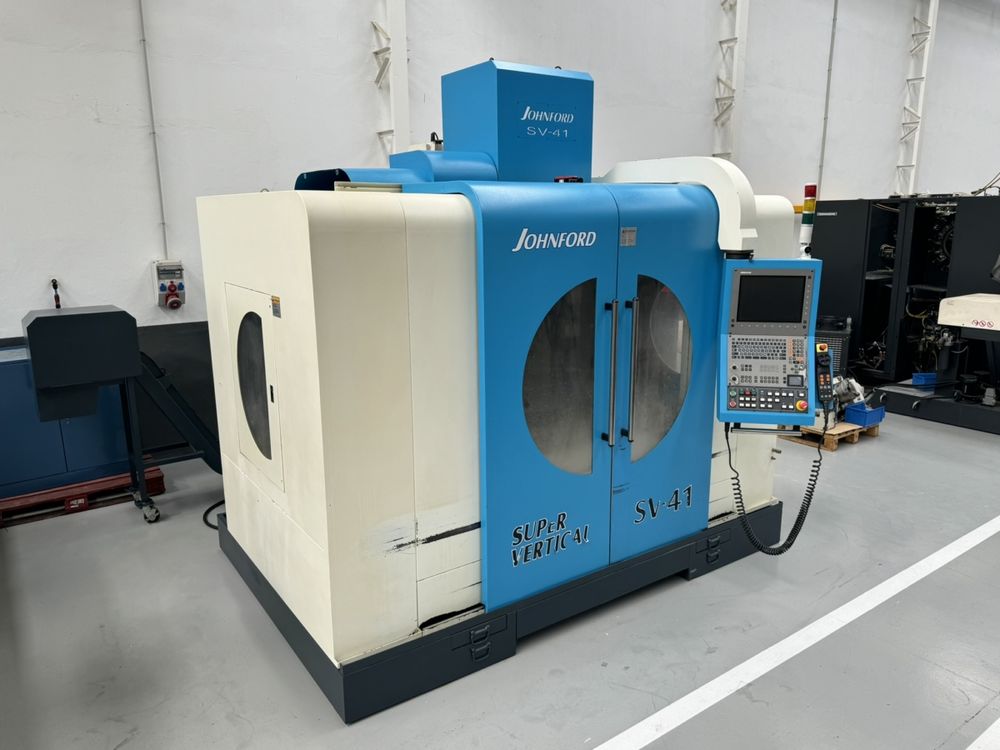

Johnford SV-41 4/5 Axis

X-axis travel: 1050 mm
Y-axis travel: 610 mm
Z-axis travel: 610 mm
Rapid traverse X-axis: 30000 mm/min
Rapid traverse Y-axis: 20000 mm/min
Rapid traverse Z-axis: 20000 mm/min
Feedrate: 12000 mm/min
4th axis rotary table diameter: 200 mm
CNC control: Heidenhain iTNC 530
Electronic handwheel: Heidenhain HR-410
Internal coolant system: 20 bar
Table size: 1200 × 600 mm
Distance table to spindle: 100–710 mm
Table load capacity: 1200 kg
Spindle taper: BT40
Spindle speed range: 60–10000 rpm
Spindle motor power: 7.5 / 11 kW
Tool changer capacity: 20 positions
Maximum tool diameter: 100 mm
Maximum tool length: 320 mm
Maximum tool weight: 10 kg
Chip conveyor: 2 units
Machine dimensions: 2900 × 3420 × 2888 mm
Machine weight: approx. 7 t
4th/5th axis rotary table
Rotary table tailstock
ZF gearbox
Electrical cabinet air conditioning
