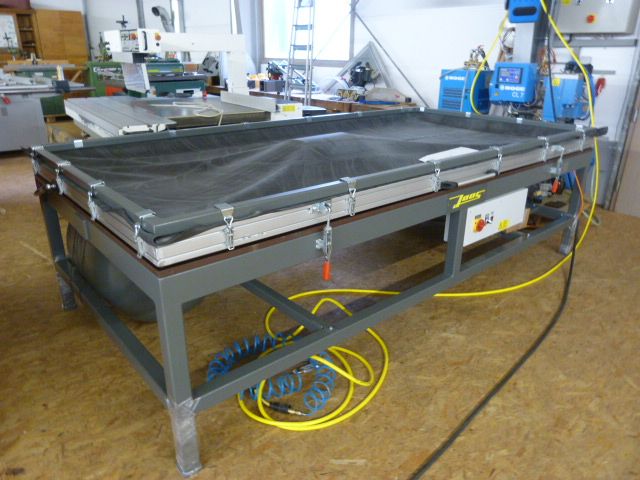

Joos VAK3015

Vacuum press
Working surface: 2800x1300mm
Mold height max. 600mm
Vacuum pump: 40m³/h
2x 200l vacuum tank

oil-free rotary vane vacuum pump
clamped membrane
Double frame for membrane clamping
separate rubber sealing strip

The torsion-resistant underframe of the press is welded from steel profiles. On
The exchangeable vacuum plate made of wood is located on the base.
The surface the vacuum plate is in a waterproof, coated design with cross cuts.
The snap frame made of hard-anodised aluminum profiles can be rotated on the back
stored, the load balancing takes place via two gas pressure dampers.
The membrane is clamped over a double frame.
The folding frame is mechanically locked on the base.

Vacuum height by means of electr. switch adjustable
Control cabinet installed in the base with rubber membrane
400V, 50Hz
