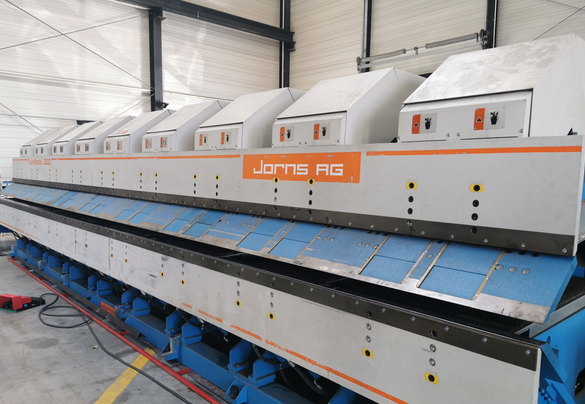

Jorns TwinMatic-300-SO-1150-CNC8000 Working length: 8000 mm

Max steel sheet thickness: 3.00 mm
Max aluminum sheet thickness: 4.00 mm
Max stainless steel sheet thickness: 2.00 mm
Bending angle (max): 145°
Insertion depth: 1150 mm
Back gauge max: 1150 mm
Back gauge min: 150 mm
Number of supports: 9
Dimensions (LxWxH): 10900 x (2367 x 700) + fence 2070 mm
Total power requirement: 400 V
Weight: 26000 kg
Control: CNC 8000
Features/Equipment:
Retrofit with new control in progress
Stable welded construction
9 clamping cylinders
36 coupling joints K38 on base frame
Front gauge
Brush table
Upper beam with waterfall groove
Oil filling
Mounting and leveling material
Emergency stop rail along entire machine length
Integrated emergency stop pedal for upper and bending beam
Second pedal for 2-man operation
Upper beam safety
2 short clamping fingers
Professionally repaired, tested, and cleaned
Test run to be conducted
