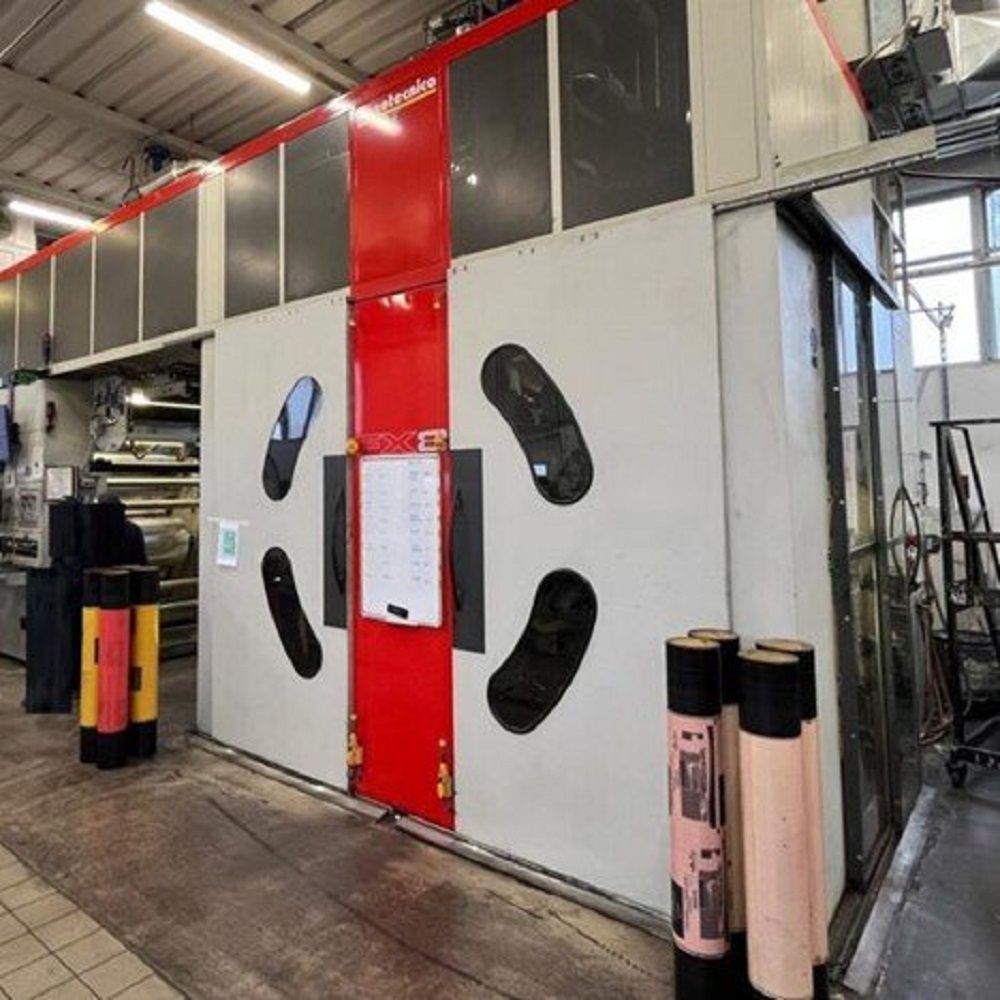

KBA FX8 8 1200 mm

Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1200
Min print repeat (mm) 400
Max print repeat (mm) 800
Unwinder type Automatic Turret
Max reel diameter unwinder (mm) 1000
Rewinder type Automatic Turret
Max reel diameter rewinder (mm) 1000
Drying 2 zones , four fans , Gas burner
Corona treatment Yes ME.RO.
Web guides 2 webguide system 1 before printing unit 1 before winder
Vyscosity control Gama Viscosity Control System VISG265VID
Inking system Closed chamber doctor blades
Anilox : 40 approx.3x90 L/cm-vol.23, 1x L/cm-vol.17, 1x140 L/cm-vol. 9, 1x120 L/cm-vol. 11,5,
2x120 L/cm-vol. 10, 1x220 L/cm-vol. 11, 5x280L/cm-vol. 8, 3x300 L/cm-vol. 7, 2x320 L/cm-vol. 6,
3x360 L/cm-vol. 6, 3x380 L/cm-vol. 5, 2x420 L/cm-vol. 4,2 , 6x460L/cm-vol. 4,
1x520 L/cm-vol. 4,5, 1x521 L/cm-vol. 4,5, 1x Apex S, 1x Apex M, 1xApex L, 1xApex XL
Print Sleeves 400 approx. repeats as follows: 400,410,420,430,440,450,460,470,490,500,510,520,530,535,540,550,560,570,
580,590,600,620,625,630,640,660,670,680,700,710,720,740,760,770,780
Print cylinders 2 sets of 8 carriers
Note Automatic Sleeve storage Stimm
