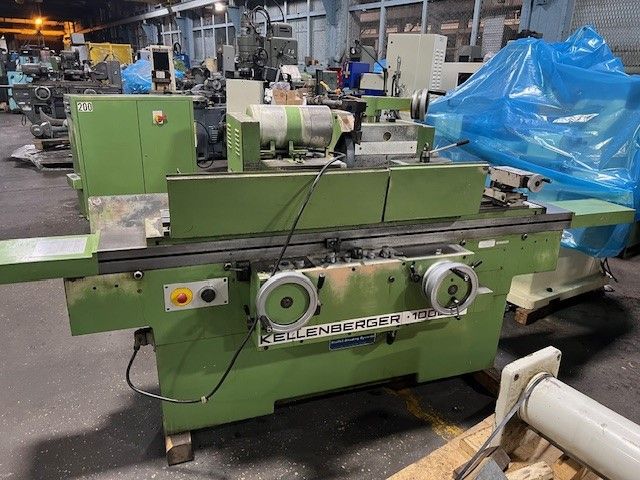

Kellenberger 1000U, I.D. ATTACH., FULL AUTO CYCLE

Distance between centers 39-3/8"
Distance between centers with tailstock overhang 47-1/4"
Height of centers with removable risers 9-27/32"
Standard swing without risers 9.8"
Max swing with factory risers 19.625"
Longitudinal table travel 51-13/16"
Longitudinal table travel per handwheel turn coarse 25/32"
Longitudinal table travel per handwheel turn fine 3/32"
Longitudinal table speed hydraulic 0.6-240 IPM
Table swivels 9 degrees
Reversing dwell 0 to 5 seconds
Grinding wheel infeed graduation 0.0002"
Automatic feed maximum 0.036"
Automatic infeed per table reversal 0.00005" to 0.0012"
Infeed for plunge grinding 0.00004" to 0.002"
Micrometer stop graduation 0.00005"
Transverse movement of wheel slide 11-1/4"
Hydraulic rapid wheel slide advance/retraction stroke 1-37/64"
Grinding wheel speeds 1500, 1700, 2200, 3600 RPM
Grinding wheel cylindrical 16" x 2" x 5"
Grinding wheel surface grinding 10" x 3/4" x 3"
Swivel of grinding head locking every 90 degrees 270 degrees
Vertical motion of grinding spindle head 4-59/64" to 13-25/32"
Workhead spindle speeds 10-400 RPM
Workhead swivels 360 degrees
Inside taper of work spindle #5MT
Approximate floor space required 106" x 64" x 66"H
Approximate machine weight 6,500 LBS
Hydraulic single lever control
Infinitely variable table traverse
Automatic infeed
Plunge infeed
Rapid wheel advance and retraction
Sparkout timer
Adjustable center height
Three wheelhead configuration
O.D. grinding wheel option
I.D. grinding wheel option
Face grinding wheel option
Factory mounted I.D. block
Choice of I.D. grinding spindle
Assortment of I.D. spindle quills with wheels
Two chucks with #5MT adaptor
Draw bars
Table mounted wheel dresser
Coolant system
3/60/230-460 volt electrics
