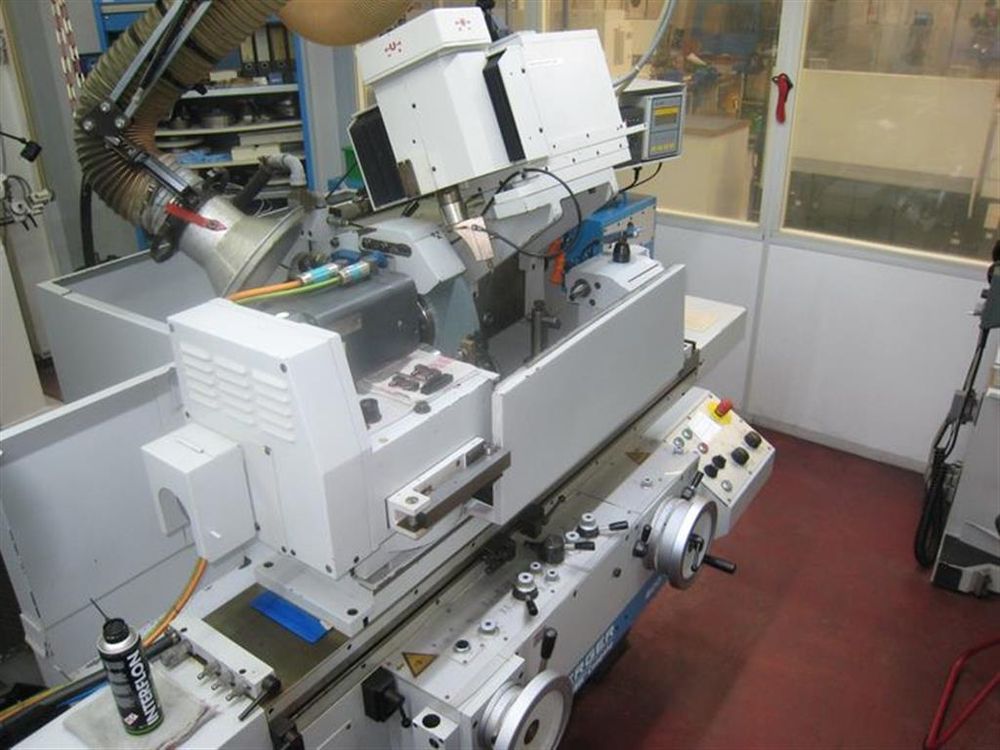

Kellenberger 600UR

Grinding Diameter: 350 mm
Grinding Length: 600 mm
Center Height: 175 mm
Grinding Wheel Bore Diameter: 127 mm
Grinding Wheel Size: 400 x 50 mm
Grinding Spindle Speed: 1,500 / 1,700 / 2,200 rpm
Workpiece Spindle Speed: 6–600 rpm
Max Workpiece Weight Between Centers: 150 kg
Workpiece Headstock Swivel Range: -30 to +120°
Grinding Headstock Swivel Range: -180 to +90°
Table Swivel Range: -10 to +15°
Table Longitudinal Travel: 905 mm
Automatic Infeed per Table Reversal: 0.001–0.030 mm
Continuous Infeed: 0–0.99 mm
Table Speed: 0–6 m/min
Tailstock Taper: MK 4
Tailstock Quill Stroke: 30 mm
Internal Grinding Spindle Diameter: 80 mm
Spindle Drive Motor Power: 3.6 kW
Spindle Taper: MK 5
Total Connected Load: approx. 7.5 kW
Machine Weight: approx. 2.3 t
Space Requirement: approx. 3.2 x 2.1 m

Internal Grinding Attachment with Spindle 28,000 rpm
2-Axis Digital Readout
Balancing Unit ELASO EB 2000
NC Dressing Unit ASYST APNC 400 with Programming Device
Coolant Tank
Belt Filter
Manuals
Grinding Wheels
Mandrels
Steady Rest
Drive Plates
Collets
Chucks
Balancing Scale
Table Dresser
