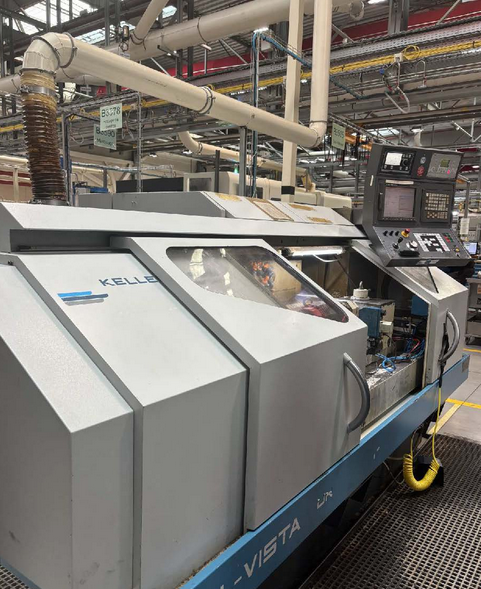

Kellenberger KEL-VISTA UR 175/1000

Rapid Feed: 12 m/min
B Axis: +10 / -210 °
Workpiece Spindle Head Rotation: +100 / -10 °
GE FANUC Series 21i-T CNC Control
Coolant System
Paper Filtration System
Centre Height: 175 mm
Distance Between Centres: 1000 mm
Maximum Workpiece Weight: 100 kg
Spindle Speed: 8 – 800 rpm
Grinding Wheel Speed: 35 m/s
Grinding Spindle Motor: 5 kW
Spindle Taper: ASA 5 / MK 5
Tailstock Taper: MT4
Grinding Wheel Diameter: 400 mm
Grinding Wheel Width: 63 mm
Grinding Wheel Bore: 127 mm
Tailstock Travel: 50 mm
Table Angular Displacement: 9 °
Machine Length: 3200 mm
Machine Width: 1700 mm
Machine Height: 2000 mm
