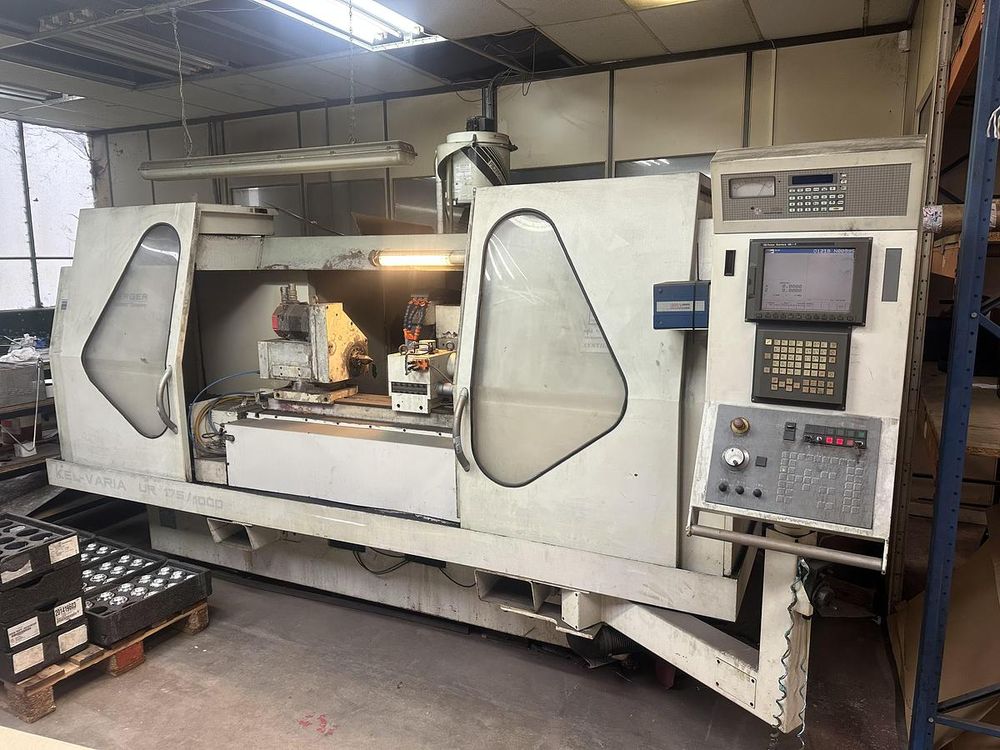

Kellenberger Kel Varia UR 175/1000

Maximum workpiece diameter 175 mm
Maximum grinding length 1000 mm
Maximum workpiece weight approx. 150–200 kg
X-axis travel approx. 175 mm
Z-axis travel approx. 1000 mm
Wheelhead traverse depending on configuration
Grinding spindle speed variable, up to 6,000 RPM
Wheel diameter approx. 350–400 mm
Wheel motor power approx. 7.5–11 kW
Fanuc 18i TA CNC control
Programmable X/Z axes for precise contour grinding
Supports multiple passes, taper grinding, and automated cycles
Manuals included
Filtration system included
Extraction system included
Approximate footprint 3.0 m x 1.8 m
Approximate weight 4,500–5,500 kg
