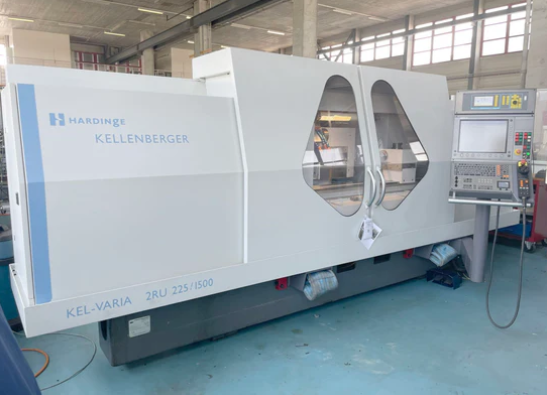

Kellenberger KEL-VARIA 2RU 225/1500

Centre height 225 mm
Distance between centres 1500 mm
Max grinding diameter 432 mm
Workpiece weight on centres 150 kg
Grinding wheel left diameter 400 mm
Grinding wheel left width 63 mm
Grinding wheel left bore 127 mm
Grinding wheel right diameter 500 mm
Grinding wheel right width 80 mm
Grinding wheel right bore 127 mm
B-axis resolution 0.1°
Grinding wheel speed from 1000 rpm
Grinding wheel speed up to 2150 rpm
Swivelling range +10° / -230°
Peripheral speed 45 m/s
Workpiece spindle speed from 8 rpm
Workpiece spindle speed up to 800 rpm
Workpiece spindle taper 5 CM
Permitted spindle load 160 Nm
Tailstock taper 4 CM
Tailstock spindle stroke 50 mm
Tailstock pressure 200–700 N
Voltage 400 V 50 Hz
Magnetic chuck diameter 400 mm

KEL-ASSIST 100
Coolant through spindle
Paper filtration system
C axis
B axis
Movomatic measuring system
KEL-SET tool measuring device
Movomatic C25
Dressing device on upper table
Grinding device on under-table
Swivelling diamond holder
Balancing attachment
Automatic balancing device KEL-BALANCE
Software pack
