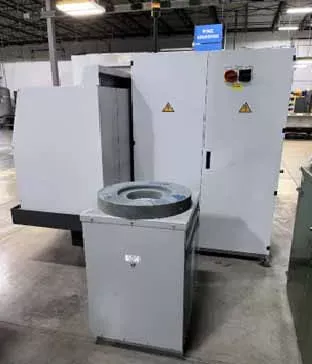

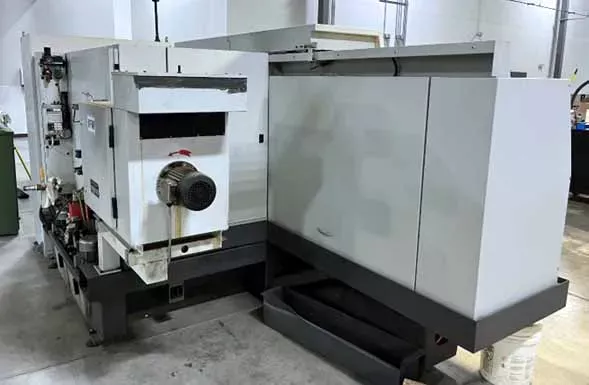

Kellenberger KEL-VARIA RD225/1500

Kellenberger KEL-VARIA RD225/1500

Control: - Fanuc 18i-T
Voltage Required 3 x 400 V / 50 Hz / 3 x 460 V / 60 Hz
Grinding Diameter 17.7"

DISTANCE BETWEEN CENTERS 59"
Grinding Length 59"
Travel 29.5" / 45.3"/ 65"
Rapid Traverse Speed m/min 20
Resolution 01um
Swiveling range of upper table degree 9 / 9 / 7
Voltage Required 3 x 400 V / 50 Hz / 3 x 460 V / 60 Hz

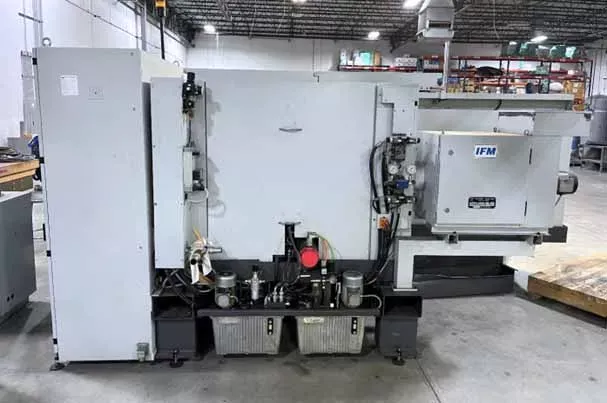

IFM Filtration System (Integrated)

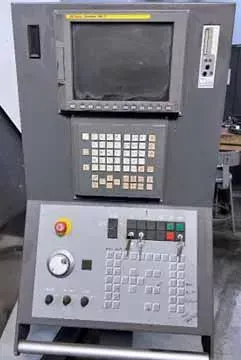

Fanuc Series 18i- T Control
automatic B-axis with Hirth gearing

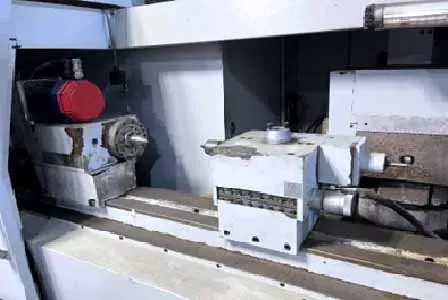

Workpiece headstock in reinforced design
Pneumatic relief for the workpiece headstock
H tailstock (heavy - reinforced version)
Hydraulic quill retraction for the tailstock
Tailstock with micro adjustment for cylindricity correction
Dressing device mounted on the under table
Active Marposs longitudinal positioning "Kel--Pos" on
Grinding head mounted
including curved probe arm T25G
Marposs bevel detection

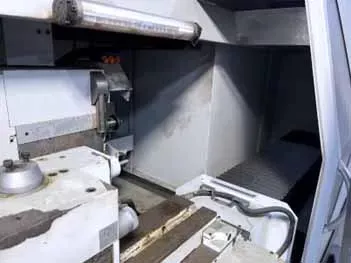

Full space encapsulation of the machine
Grinding mist extraction
