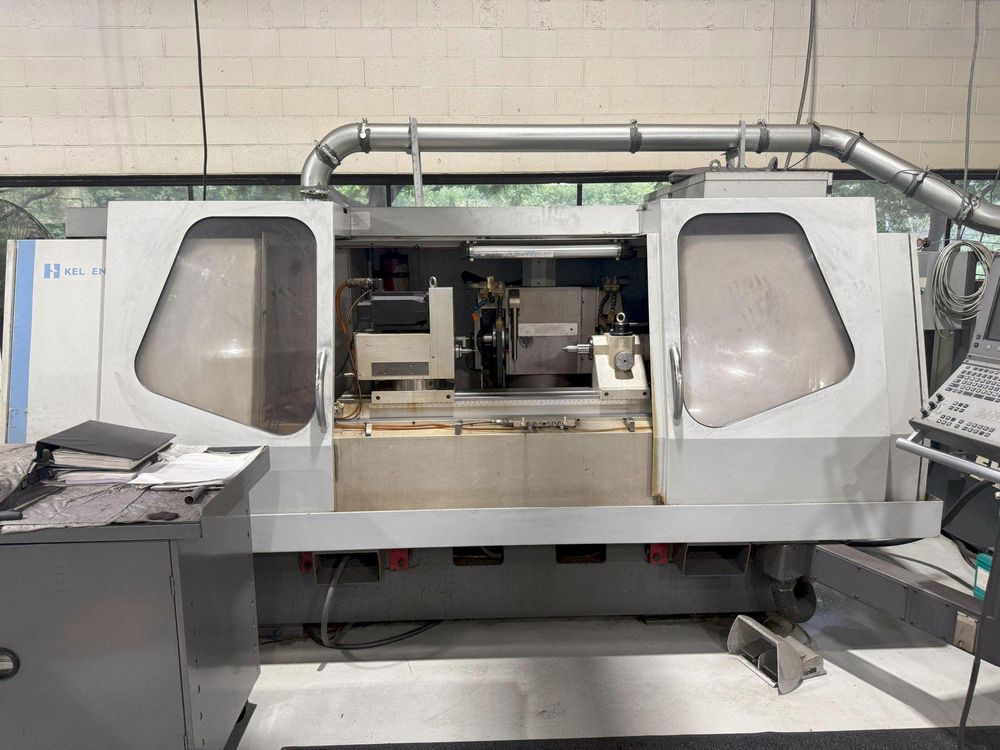

Kellenberger Kel-Viva UR175/1000

X-Axis Travel 13.77"
Z-Axis Travel 45"
CNC Control Heidenhain GrindplusIT
Swing 13.78"
Center Distance 40"
Max Weight Between Centers 220 lbs
Grinding Wheel Dimensions 18" x 2.5" x 5"
Grinding Wheel Speed 1,880 rpm
Grinding Wheel Spindle Motor 10.2 hp

Wheelhead Universal
Wheelhead Swivel +90° to -190° CNC Controlled
Workhead Taper MK5
Workhead Speed 1,000 rpm
Workhead Live

Internal Grinding Attachment yes
I.D. Spindle Speed 40,000 rpm
Machine Dimensions 118" x 67"
Machine Weight 11,000 lbs
Automatic B-axis Wheelhead Swivel 1° Indexing
C Axis Workhead
Shoulder Gauge
(2) OD Spindles
(1) ID Spindle
Rotary Form Dresser
Tailstock
Coolant System
Ebbco Chiller
16 Extra Wheels on Hub
Lots of Extra Tooling
New Heidenhain PC Unit 2024
New Harddisk
New Software Package – KB0162518 UEModule Heidenhain UE212D
