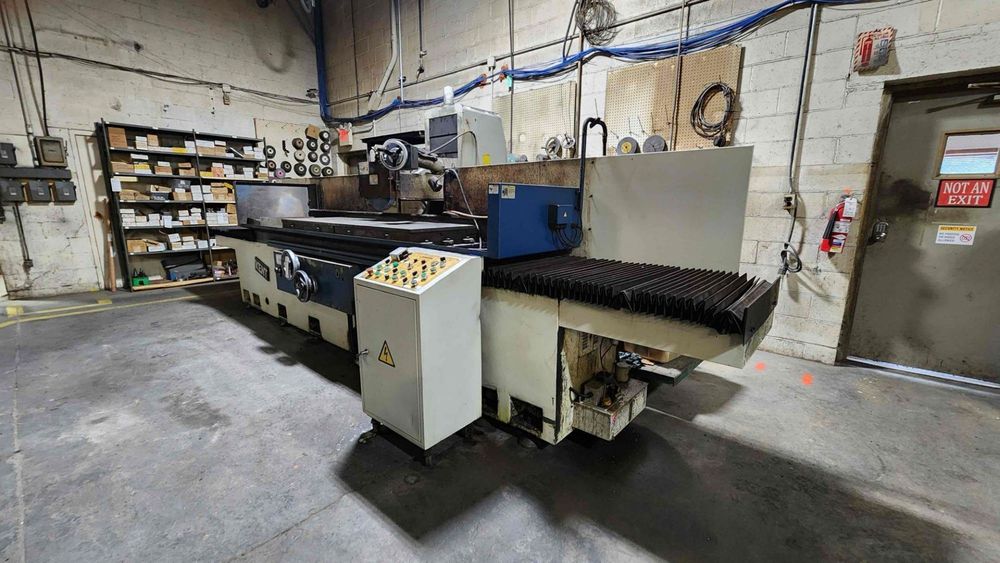

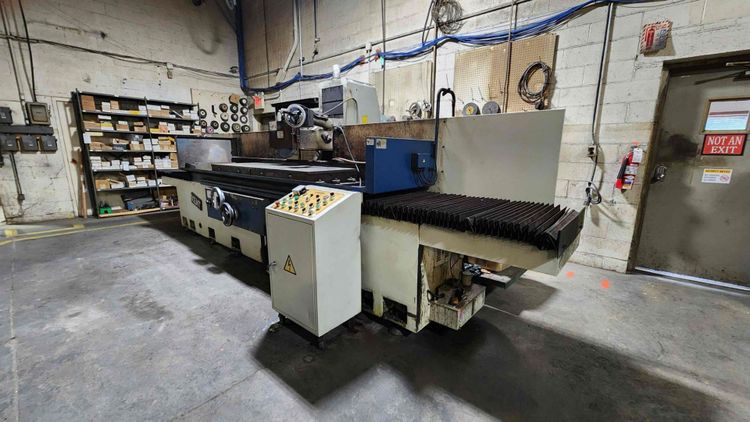

Kent KGS-620AHD

Kent KGS-620AHD, 3X AUTO FEEDS, PROG. AUTO IDF, EMC,
Year: 2012


MAX. GRINDING CAPACITY .............. 24" X 80"
DIST. FROM SPINDLE CENTER TO TABLE .. 23- 5/8"
LONGITUDINAL TABLE TRAVEL ........... 87- 3/8"
CROSS TRAVEL ........................ 26- 3/8"
VARIABLE TABLE SPEED, HYDRAULIC ..... 13' TO 73' FPM
AUTOMATIC CROSSFEED INCREMENT ....... 0.02" TO 0.5"
RAPID CROSS TRAVERSE RATE ........... 60" IPM
AUTO INCREMENTAL DOWNFEED RANGE .... 0.0002" TO .0016"
SPARKOUT PASSES ..................... 0 TO 9

DOWNFEED HANDWHEEL, PER GRADUATION .. 0.0005"
PER REVOLUTION ... 0.1"
CROSSFEED HANDWHEEL, PER GRAD. ...... 0.001"
PER REVOLUTION ... 0.2"

SPINDLE MOTOR ....................... 10 H.P.
STANDARD GRINDING WHEEL ............. 14"D x 2" x 5"

APPROX. WEIGHT ...................... 17,600 LBS
APPROX. MACHINE SIZE ................ 188" x 89"D x 96"H

EQUIPPED WITH:
COLUMN TRAVELS FOR THE CROSS FEED
ELECTRONIC PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
(BOTH SURFACE& PLUNGE) W/SPARKOUT, AUTO WHEEL
RETRACTION& TABLE PARK @ COMPLETION OF GRIND CYCLE.
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
ELECTRIC POWER CROSSFEED
MEEHANITE CAST IRON CONSTRUCTION
TABLE WAYS ARE V & FLAT WAY DESIGN, WITH TURCITE-B FOR
LOW FRICTION & INCREASED LIFE
SADDLE WAYS ARE DOUBLE V DESIGN, LINED WITH TURCITE-B
(2) 23- 5/8" X 39.7" (24" x 80" TOTAL) "KANETSU"
ELECTRO-MAGNETIC CHUCKS
VARIABLE HOLD NEUTROFIER CONTROL
AUTO RECIRCULATING LUBRICATION SYSTEM
EXTERNAL COOLANT SYSTEM WITH PAPER FILTRATION
EXTERNAL HYDRAULIC SYSTEM
10 H.P. SPINDLE MOTOR
5 H.P. HYDRAULC SYSTEM MOTOR
MACHINE IS WIRED FOR 220 OR 440 VOLTS OPERATION
