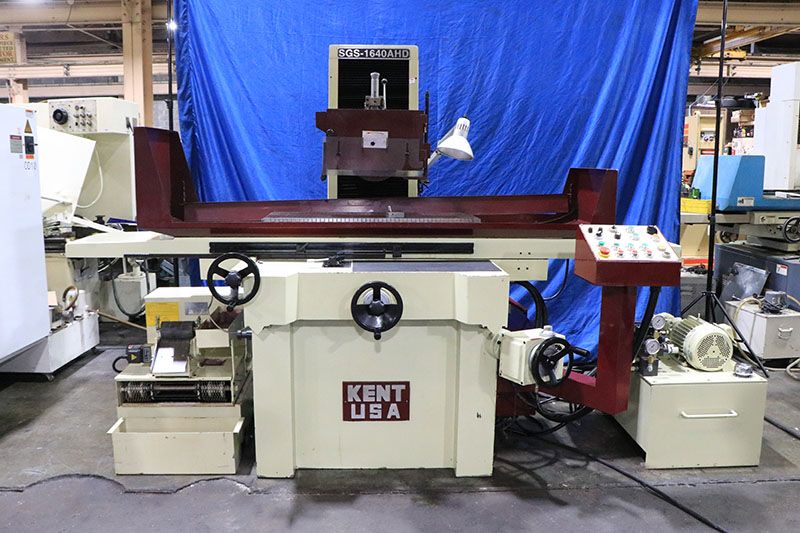

Kent SGS-1640HD

Max grinding capacity 16" x 40"
Distance from spindle center to table 23"
Longitudinal table travel 43"
Cross travel 17-3/4"
Variable table speed hydraulic 16' to 80' FPM
Automatic crossfeed increment 0 to 5/8"
Rapid cross traverse rate 35" IPM
Auto incremental downfeed 0.001" to 0.0001"
Downfeed handwheel per graduation 0.0005"
Downfeed handwheel per revolution 0.1"
Crossfeed handwheel per graduation 0.001"
Crossfeed handwheel per revolution 0.2"
Spindle motor 7.5 HP
Standard grinding wheel 14" D x 2" x 5"
Approximate weight 7,480 lbs
Auto incremental downfeed (surface & plunge)
Power rapid wheelhead positioning
Hydraulic table traverse
Power crossfeed
16" x 40" Kanetsu KET-40100K electromagnetic chuck with variable hold neutrofier control
Over-the-wheel dresser with micrometer adjustment of diamond
Coolant system with paper filtration and magnetic separator
Meehanite casting
V & flat Turcite ways for smooth longitudinal travel
Centralized lubrication system
External hydraulic system
Wired for 3/60/230 volts
