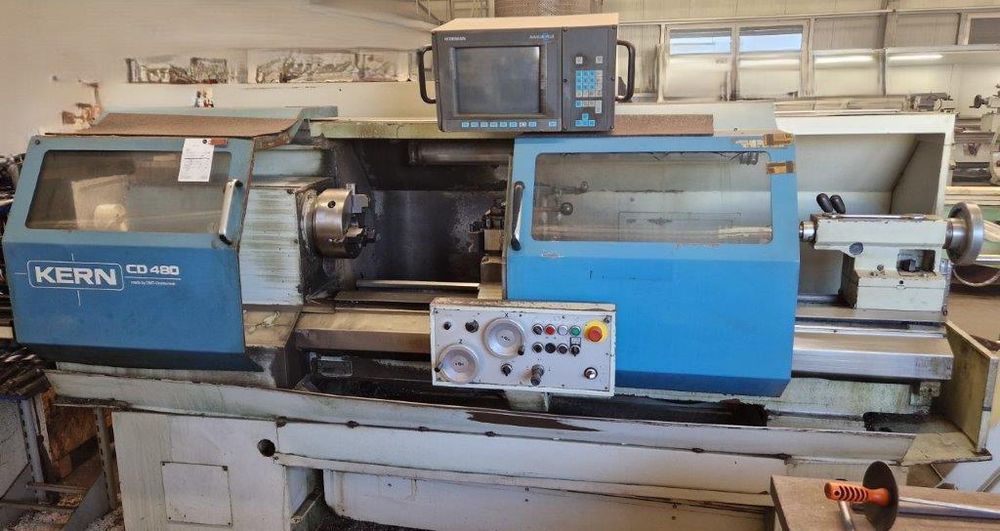

Kern CNC CONTROL 3.000U/min DMT CD 480 2 Axis

Ref : 2719522-3-AW

Condition : Used

Manufacturer : Kern

Controller : CNC CONTROL

Spindle Speed : 3.000U/min

Model : DMT CD 480

Nb Of Axis : 2 Axis

Year(s) : 1998

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

KERN-DMT CD 480
Year of manufacture 1998

Circulation/rotation Ø over bed475mm
Rotation/rotation Ø via cross slide260mm
Sledge path plan260mm
centre distance1000 / 1500 / 2000mm
power capacity22kW
Gear stages. m= manual / e= electric.2 e
Spindle head DIN 55026 / DIN 55027A6 / 6
Spindle Ø in front bearing115mm
spindle bore78 / 70mm
turning speed range (V-constant)1 - 3.000U/min
feed range flat1µ - 1.000mm/U
feed range lengthwise and thread1µ - 2.000mm/U
Rapid traverse plan/longitudinal5 / 10m/min
diameter of quill70mm
quill travel120mm
quill inner cone5MK
