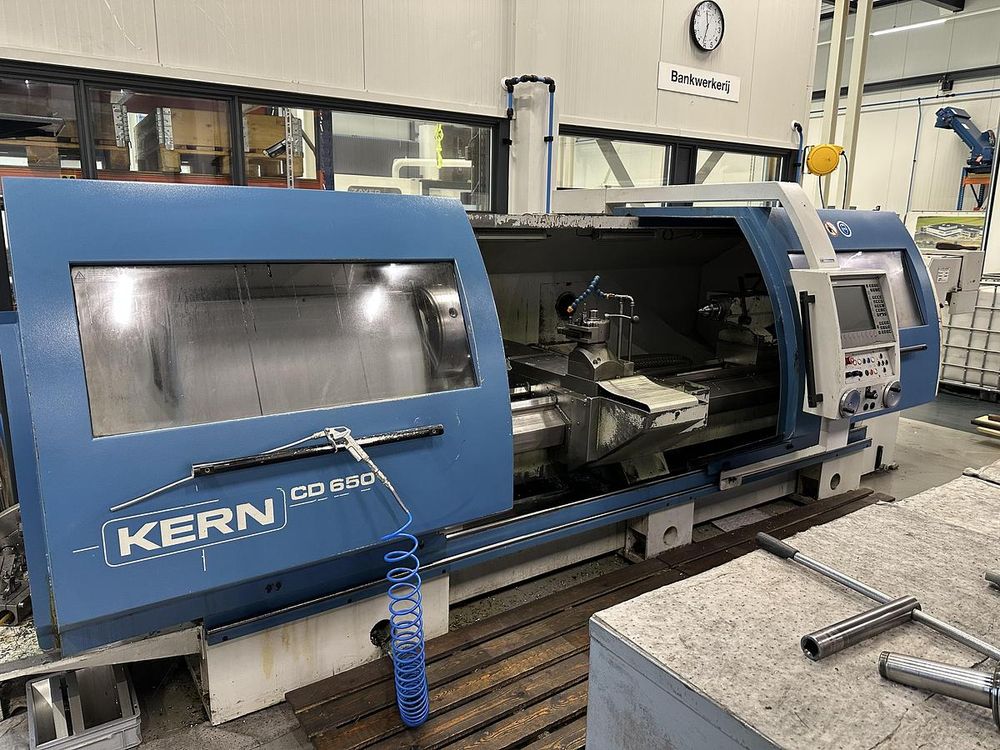

Kern Heidenhain Manual Plus 4110V2 2000 rpm CD650 3 Axis

X travel: 440 mm
Z travel: 2000 mm
Rapid feedrate Z: 5 m/min
Rapid feedrate X: 10 m/min
C axis with drilling, milling, engraving cycles
Control: Heidenhain Manual Plus 4110V2
Bar capacity: 106 mm
Max. turning diameter: 670 mm
Spindle speed: 1 - 2000 rpm
Spindle motor power: 33 kW
Spindle nose: DIN 55026 - A8
Turret type: Multifix Type C
Turret positions: 1
Tailstock taper: MK5

Chip conveyor
Self-centering 3-jaw chuck Ø400 mm
Independent 4-jaw chuck Ø600 mm
Face plate Ø650 mm
Fixed and traveling steadies
Various hard/soft jaws
Fixed and rotating centers
Approx. 30 Multifix holders Type C
Drill chucks with MK5 taper
Ethernet and USB connectivity

Machine weight: 5100 kg
Machine dimensions (LxWxH): 1.9 m + center length x 2.1 m x 1.9 m
Electrical cabinet dimensions (LxWxH): 1.2 x 0.5 x 1.6 m
