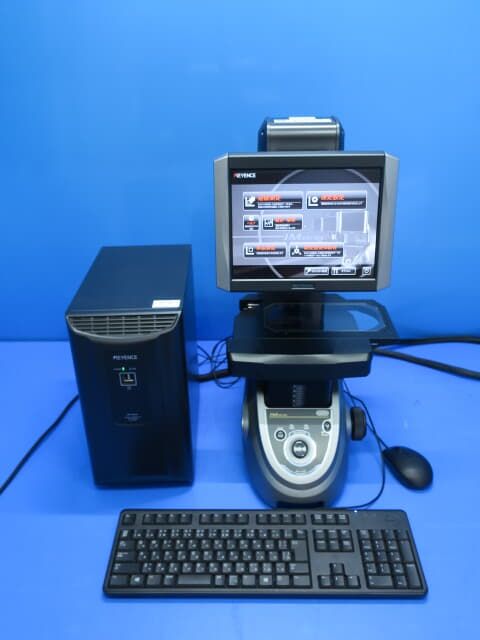

Keyence IM-6600

• Controller: IM-6600
• Measuring Head: IM-6120
• Image Sensor: 6.6 megapixel CMOS (monochrome)
• Display: 10.4-inch LCD color monitor
• Field of View (Wide Field Measurement Mode): φ100 × L200 mm
• Field of View (High Precision Measurement Mode): □25 × L125 mm
• Minimum Display Unit: 0.1 μm
• Measurement Accuracy (Wide Field, Without Coupling): ±5 μm
• Measurement Accuracy (High Precision, Without Coupling): ±2 μm
• Measurement Accuracy (Wide Field, With Coupling): ±(7 + 0.02L) μm
• Measurement Accuracy (High Precision, With Coupling): ±(4 + 0.02L) μm
• Lighting: tele-eccentric transmitted light
• Lighting: 4-segment ring light
• Stage Travel X Axis: 100 mm (electric)
• Stage Travel Z Axis: 30 mm (electric)
• Load Capacity: 1 kg
• Power Supply: AC 100–240 V, 50/60 Hz
• Weight (Controller): approx. 8 kg
• Weight (Measuring Head): approx. 28 kg
