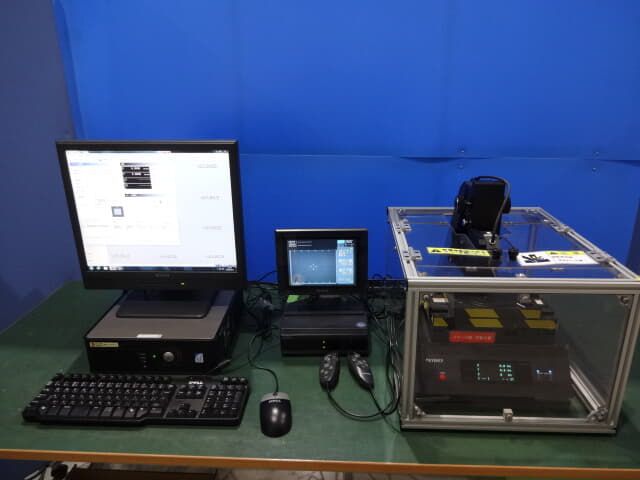

Keyence KS-1100 Test Equipment

• Stage Movement Range: X 100 mm, Y 100 mm, Z 100 mm, θ 360°
• Stage Size: Ø170 mm
• Stage Size: 180 × 180 mm
• Stage Load Capacity: 1.5 kgf (14.7 N)
• Maximum Stage Speed: 150 mm/s
• Stage Resolution: 0.1 μm
• Stage Drive System: Linear motor
• Operating Temperature: 5 to 40°C
• Operating Humidity: 35–85% RH (non-condensing)
• Main Unit Power Supply: AC 100 V ±10%, 50/60 Hz, 200 VA
• Main Unit Dimensions: W300 × D450 × H500 mm
• Main Unit Weight: Approximately 20 kg
• Displacement Sensor Model: LT-9010M
• Sensor Type: High-precision laser displacement sensor
• Measurement Range: ±0.3 mm
• Light Source: Red semiconductor laser
• Laser Wavelength: 655 nm
• Laser Spot Diameter: Approximately 0.2 μm
• Scan Width: 0–1100 μm (6 levels)
• Scan Interval: 1–10 μm (4 levels)
• Sensor Resolution: 0.01 μm
• Sensor Weight: Approximately 400 g
• Controller Model: LT-9500
• Controller Power Supply: AC100–240 V ±10%, 50/60 Hz
• Controller Weight: Approximately 2.4 kg
• Acrylic Cover: Included
• PC: Windows 7 SP1 included
• Software: KS Measure
• Software: KS Analyzer
• Software: Monitor
• Monitor: 1 included
